800*480 Resolution Waterproof IP67 External GPS GSM Combo Antenna with Fakra Plug Connector

Basic Information
Place of Origin: Guangdong, China
Brand Name: Yetnorson
Model Number: YNX-GPS+GSM-SMA-IP67
Minimum Order Quantity: 100 pieces
Price: $5.00/pieces 100-999 pieces
Packaging Details: One product with PE bag packaging of gps gsm combo antenna gps gsm combo antenna
Detail Information
Type: GPS+GSM Combined Antenna Placement: ROOF
OS: No System Screen Type: No
Resolution: 800*480 Function: CarPlay
Combination: Other Connection: SMA Or Customized
Warranty: 1 Year Use: Automotive
Name: Gps Gsm Combo Antenna Frequency Range(MHz): 1575.42±3MHz 824-960Mhz ,1710-2170mhz
LNA-Gain(dBi): 2.2dBi With Amplifier28dBi V.S.W.R: ≤2.0
Input Impedance(Ω): 50Ω Cable: RG174
Connector Type: Fakra Plug(optional) Mounting: Magnetic Base
Size: 72mm(D)x 21mm(H) Cable Type: RG174

Product Description

waterproof IP67 External GPS GSM Combo Antenna







Antenna

Center Frequency

1575.42±1MHz/800/1800/1900/2100mhz

Band Width

CF±5MHz

Polarization

RHCP

Gain

3dBic(Zenith)

V.S.W.R

<1.5

Impendance

50Ω

Axial Ratio

3dB(max)

Dimension

20*20*4mm

LNA

Gain

26±2dB

Noise Figure

<1.3

Filter Insertion Loss

<3dB

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

Supply Voltage

2.2~5V DC

Current Consumption

10~26mA

V.S.W.R

<2.0

Mechanical

Cable

RG174

Connector

SMA/MCX/FAKRA or others

Radome Material

ABS

Mounting Method

Magnet

Environmental

Operating Temperature

-40°C~+85°C

Relative Humidity

Up to 95%

Ingress Protection

IP67

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant

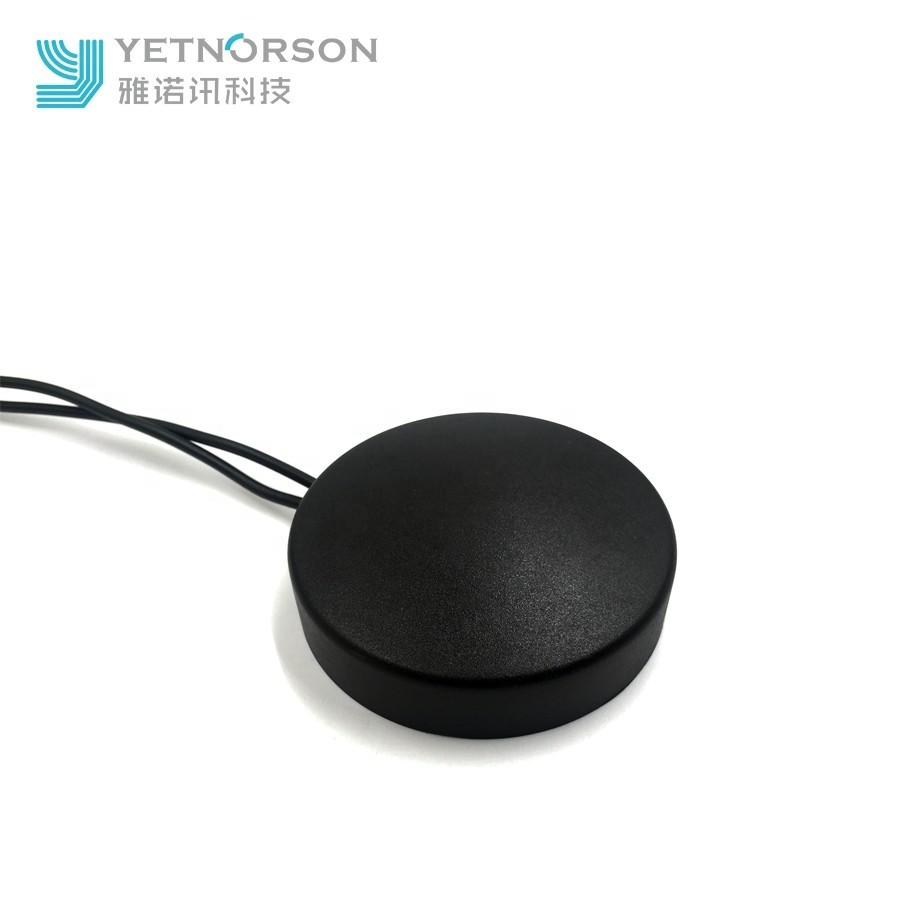

800*480 Resolution Waterproof IP67 External GPS GSM Combo Antenna with Fakra Plug Connector 0

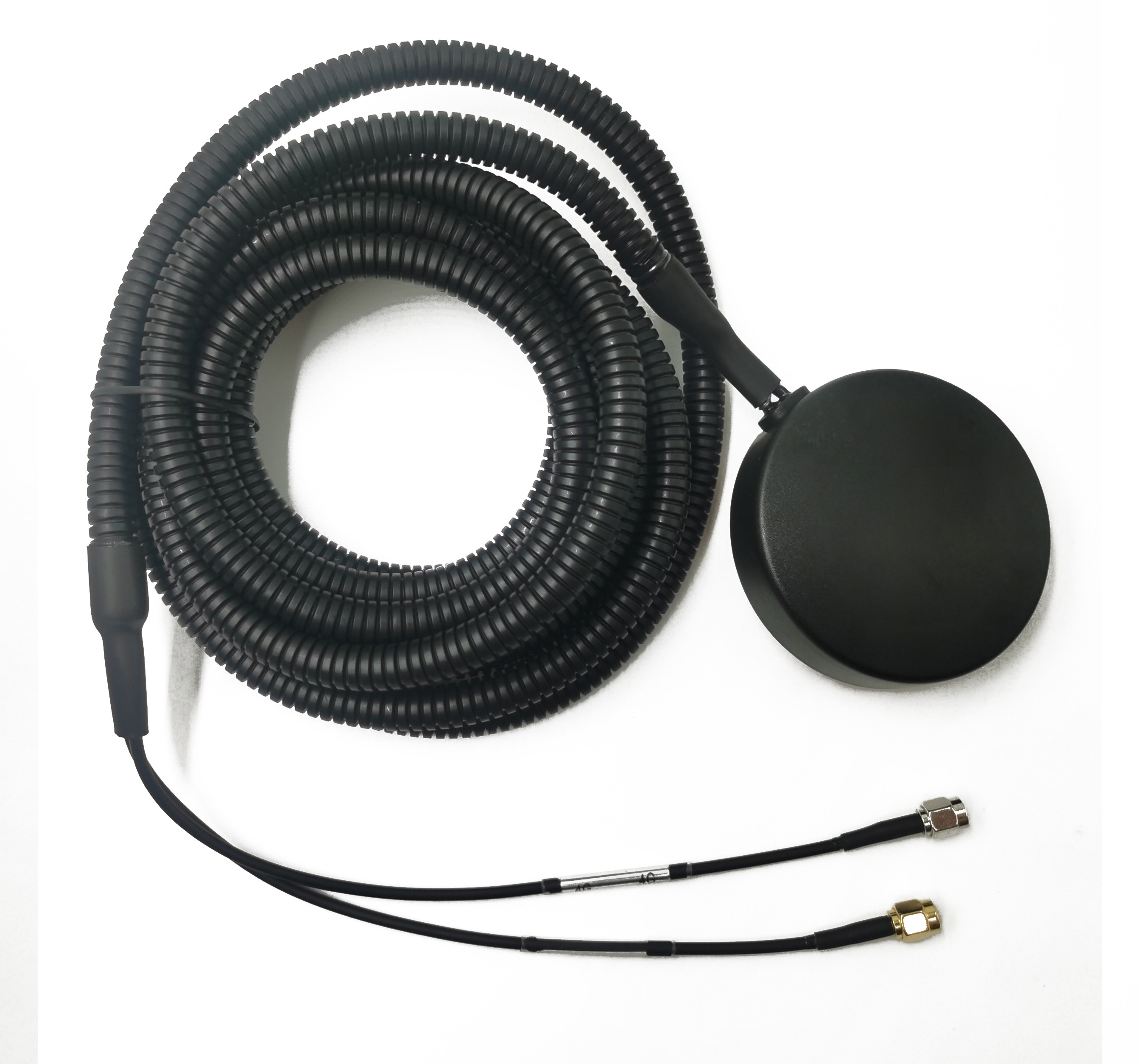

800*480 Resolution Waterproof IP67 External GPS GSM Combo Antenna with Fakra Plug Connector 1

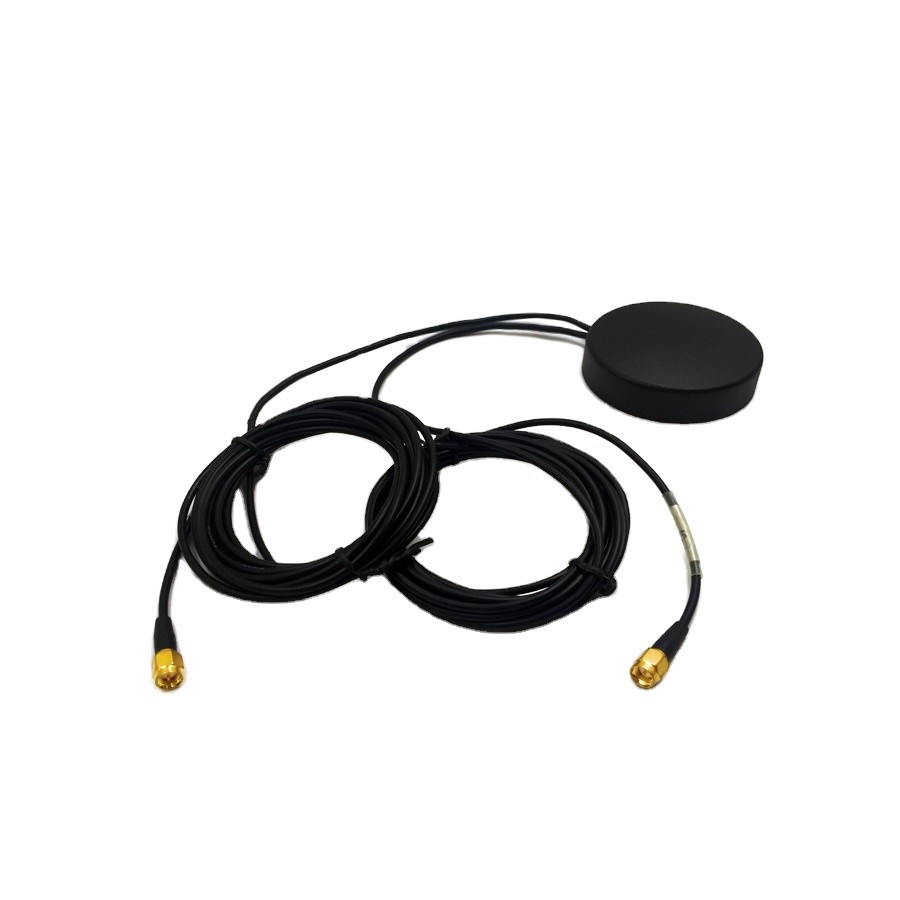

800*480 Resolution Waterproof IP67 External GPS GSM Combo Antenna with Fakra Plug Connector 2



 800*480 Resolution Waterproof IP67 External GPS GSM Combo Antenna with Fakra Plug Connector 3

 800*480 Resolution Waterproof IP67 External GPS GSM Combo Antenna with Fakra Plug Connector 4
