| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Yetnorson |
| Model Number: | YNX-GPS+GSM-SMA-IP67 |
| Minimum Order Quantity: | 100 pieces |
| Price: | $5.50/pieces 100-999 pieces |
| Packaging Details: | One product with PE bag packaging of gps gsm combo antenna gps gsm combo antenna |
| Type: | GPS+GSM Combined Antenna | Placement: | ROOF |
|---|---|---|---|
| OS: | No System | Screen Type: | No |
| Resolution: | 800*480 | Function: | CarPlay |
| Combination: | Other | Connection: | SMA Or Customized |
| Warranty: | 1 Year | Use: | Automotive |
| Name: | GPS GSM WIFI 4G Combo Antenna | Frequency Range(MHz): | GPS WIFI GSM 4G |
| V.S.W.R: | ≤2.0 | Input Impedance(Ω): | 50Ω |
| Cable: | RG174 | Connector Type: | SMA |
| Mounting: | Magnetic Base | Size: | 54mm(D)x 20mm(H) |
| Cable Type: | RG174 | Mount: | Screw Mount |

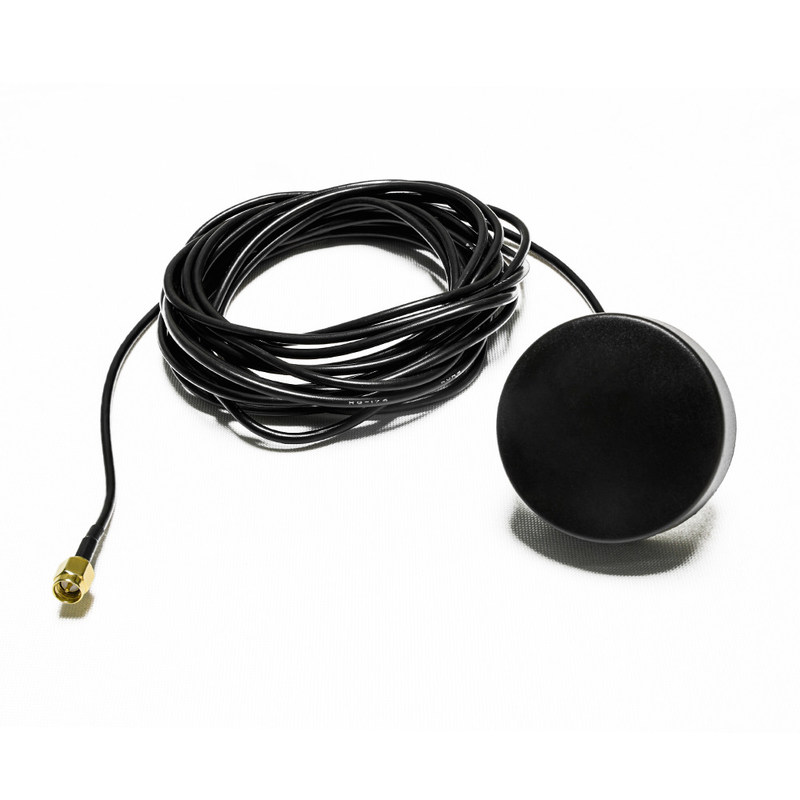

waterproof screw mount 2 in 1 or 3 in 1 GPS GSM WIFI 4G combo antenna
|
Antenna |
Center Frequency |
GPS/WIFI/GSM/4G |
|
Polarization |
RHCP/Vetical |
|
|
Gain |
3dBic(Zenith) |
|
|
V.S.W.R |
<1.5 |
|
|
Impendance |
50Ω |
|
|
Axial Ratio |
3dB(max) |
|
|
Dimension |
54*20mm |
|
|
LNA |
Gain |
26±2dB |
|
Noise Figure |
<1.3 |
|
|
Filter Insertion Loss |
<3dB |
|
|
Ex-band Attenuation |
12dB@CF+50MHz/16dB@CF-50MHz |
|
|
Supply Voltage |
2.2~5V DC |
|
|
Current Consumption |
10~26mA |
|
|
V.S.W.R |
<2.0 |
|
|
Mechanical |
Cable |
RG174 |
|
Connector |
SMA/MCX/FAKRA or others |
|
|
Radome Material |
ABS |
|
|
Mounting Method |
Magnet |
|
|
Environmental |
Operating Temperature |
-40°C~+85°C |
|
Relative Humidity |
Up to 95% |
|
|
Ingress Protection |
IP67 |
|
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
Refund & Replacement
1. We can guarantee the product quality within one years .
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred.
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation.!!!
