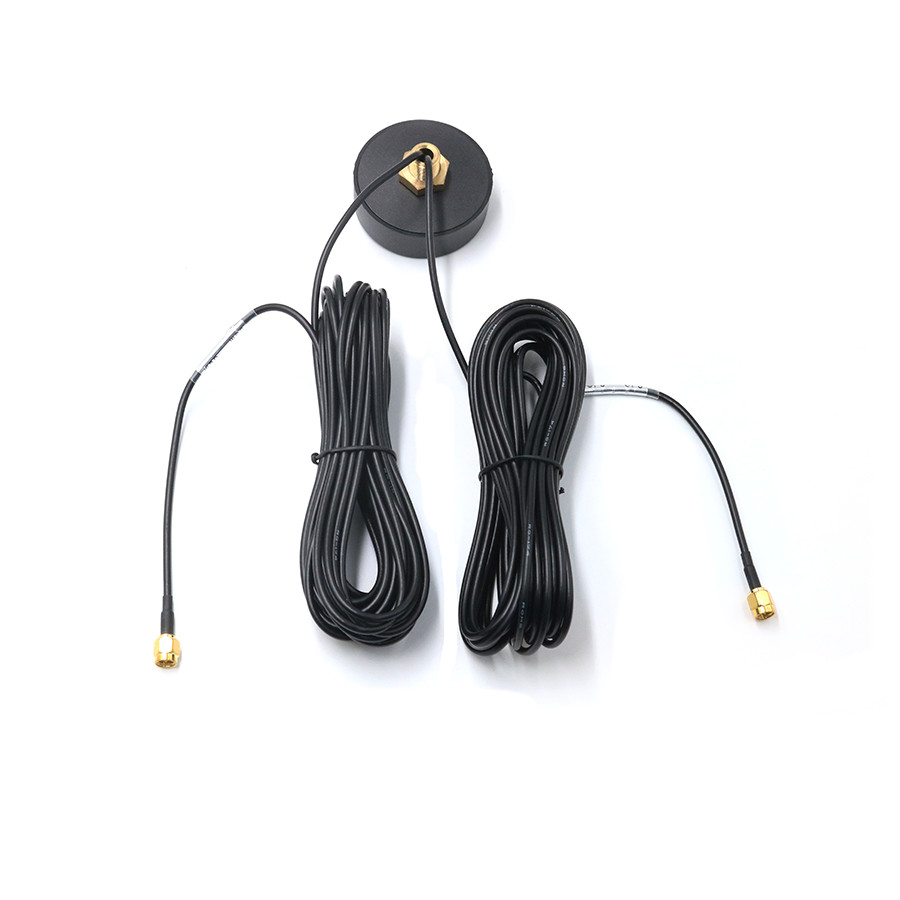

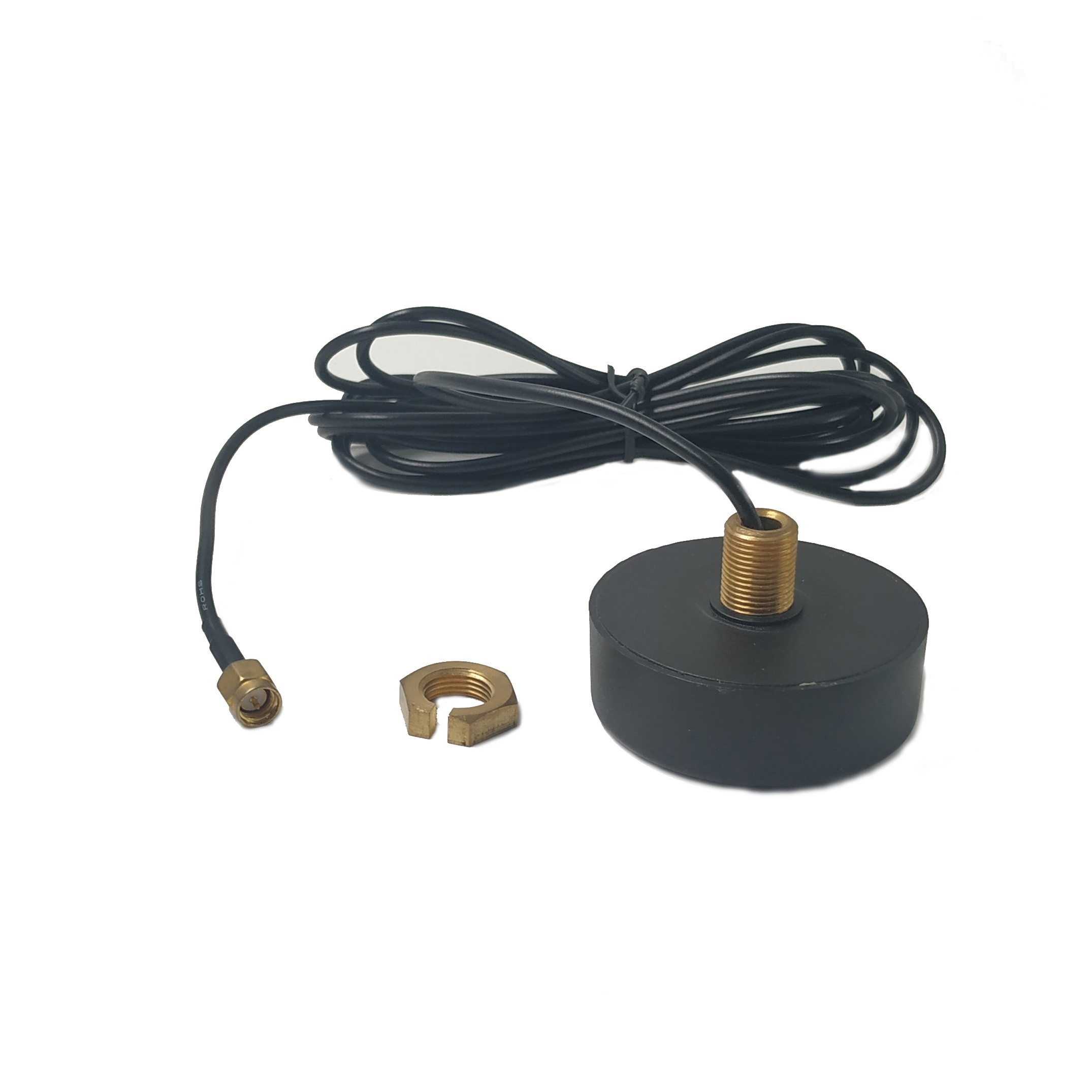

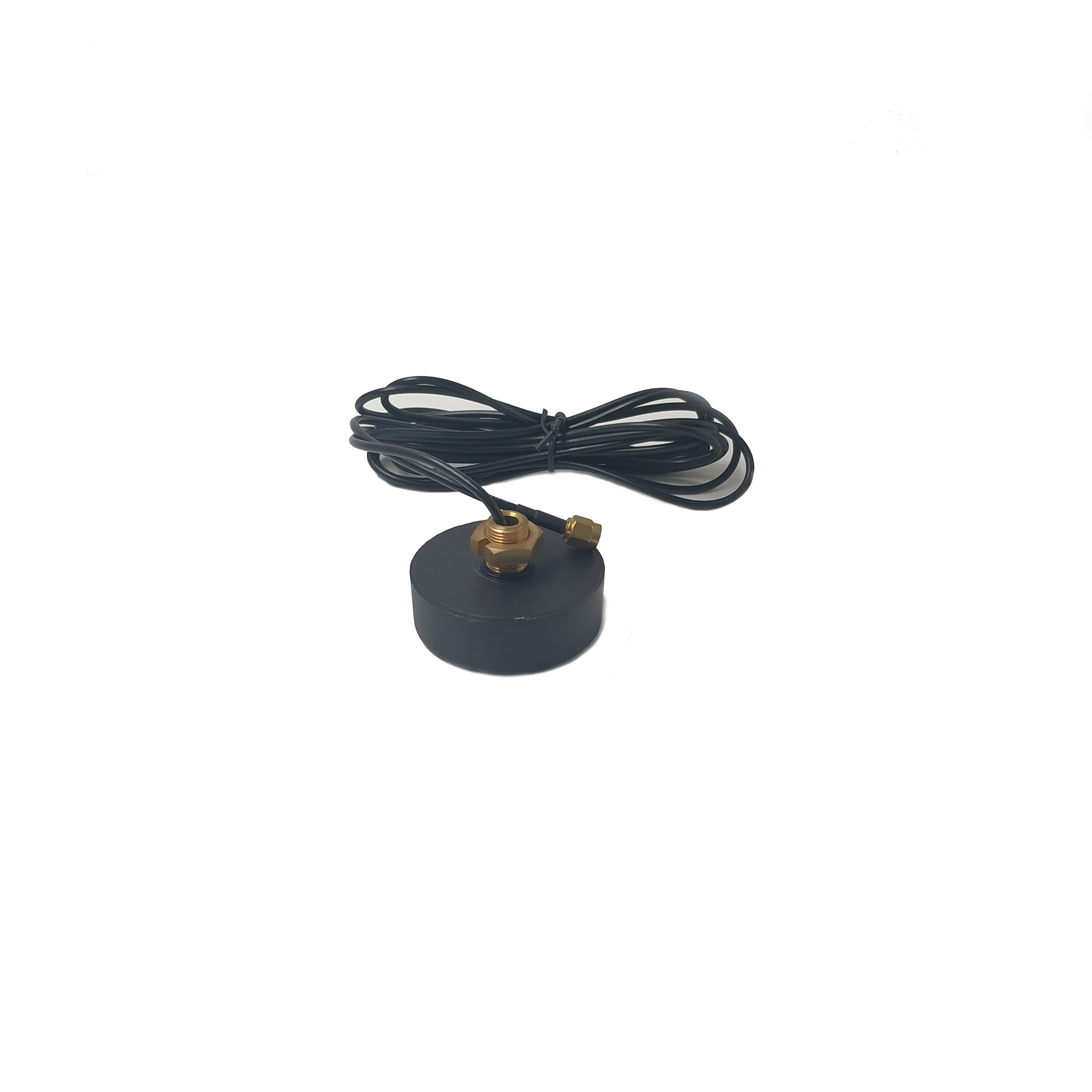

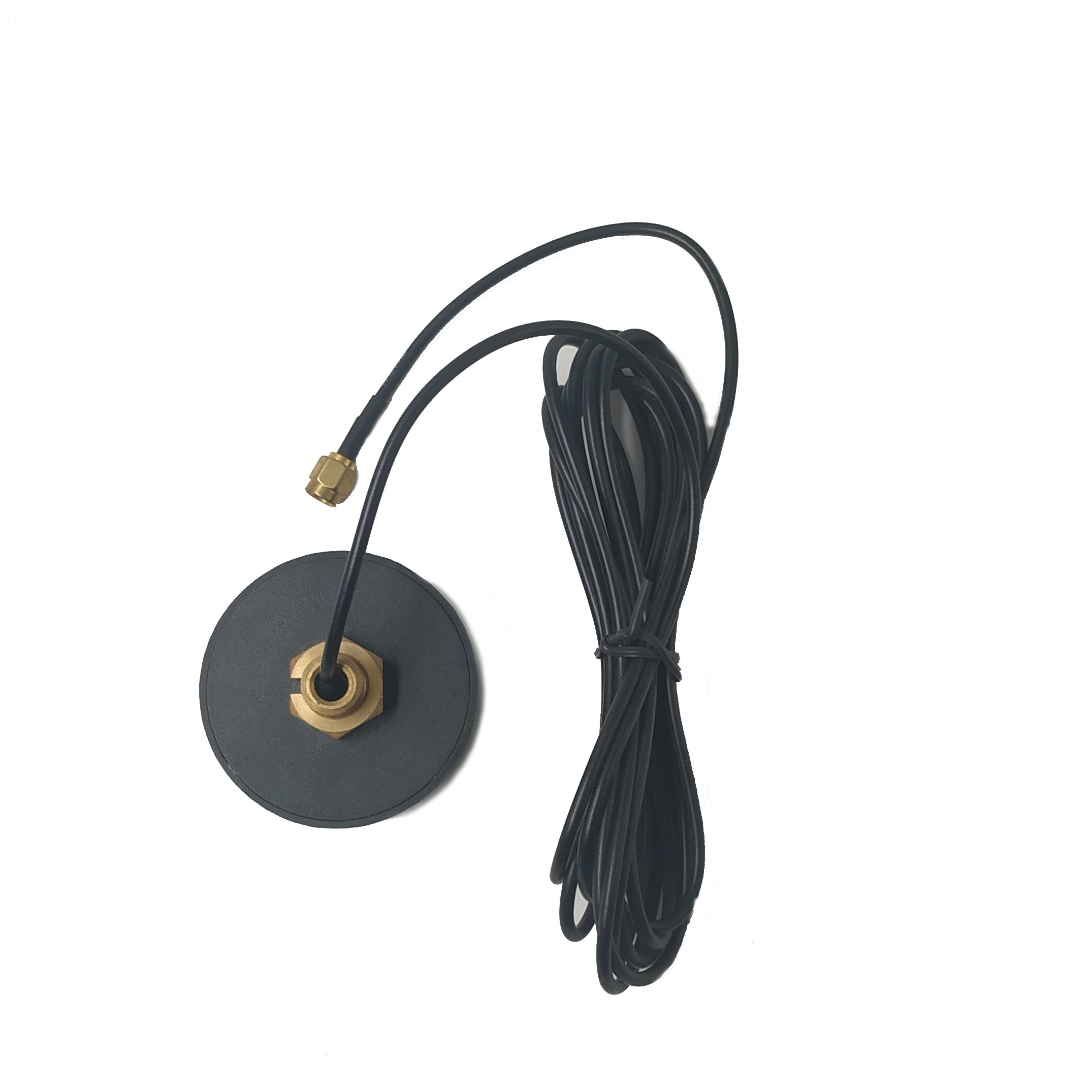

2G 3G 4G LTE Antenna BD GSM GPS Outdoor Screw Mount Combo Mimo Antenna 3.5db for GPS

Basic Information

Place of Origin:	Guangdong, China
Brand Name:	Yetnorson
Model Number:	YNX-GPS-003

Minimum Order Quantity:	500 pieces
Price:	$2.30/pieces 500-999 pieces
Packaging Details:	One product with one PE bag, then put into a carton packaging.

Get Best Price Contact Now

Detail Information

Type:	GPS Antenna	Placement:	ROOF, Outdoor
OS:	No System	Screen Type:	None
Resolution:	800*480	Function:	Touch Screen, MP3/MP4, DVD/VCD, Photo Viewer, Radio Tuner, Some Tablet Pc
Connection:	Can Be Customized	Warranty:	1 Years
Use:	Automotive	Car Make:	All
Product Name:	Factory Direct Selling 28dbi Gain Navigator GPS Module Antenna	Frequency (MHz):	1575.42MHZ±1.023MHZ/1602MHz
Input Impendence (Ω):	50	Max Input Power (w):	50
Gain (dBi):	28dB±3dB	V.S.W.R:	≤1.7
Supply Voltage:	DC3.3-5.0V	Polarization Intensity:	R.H.C.P
Cable Length (mm):	3000	Connector Type:	UFL Connector Or Customized

Product Description

Specification

item	value
Type	GPS Antenna
Placement	ROOF, outdoor
OS	no system
Screen Type	none
Resolution	800*480
Function	Touch Screen, Bluetooth-Enabled, MP3/MP4, DVD/VCD, Photo Viewer, Radio Tuner, some tablet pc
Connection	s m a
Warranty	1 Years
Place of Origin	China
	Guangdong
Brand Name	Yetnorson
Model Number	YNX-GPS-003
Use	Automotive
Car Make	all
Product name	Factory Direct Selling 28dbi Gain Navigator GPS Module Antenna
Frequency (MHz)	1575.42MHZ±1.023MHZ/1602MHz
Input Impendence (Ω)	50
Max Input Power (w)	50
Gain (dBi)	28dB±3dB
V.S.W.R	≤1.7
Supply Voltage	DC3.3-5.0V
Polarization Intensity	R.H.C.P
Cable length (mm)	3000
Connector Type	UFL connector or customized
