A: Of course, no matter how many MOQs,we can print the logo for free.
| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | yetnorson antenna |
| Model Number: | YNX-GPS-SBK |
| Minimum Order Quantity: | 100 pieces |
| Price: | $4.00/pieces 100-499 pieces |
| Packaging Details: | 1pcs antenna/PE bag. 200pcs/CTN for GPS Antenna Fakra Blue C Female Right Angle with 3meter Cable |
| Supply Ability: | 20000 Piece/Pieces per Day GPS Antenna Fakra |
| Model: | 124 Spider (348_) | Year: | 2016- |
|---|---|---|---|
| Type: | GPS Antenna | Placement: | PORTABLE, ROOF |
| Car Fitment: | Abarth | OS: | No System |
| Screen Type: | No | Resolution: | No |
| Function: | Amplifier, Antenna | Connection: | Customized |
| Warranty: | 1 Years | Use: | Automotive |
| Center Frequency (MHz): | 1575.42MHz | Gain(dBi): | 28dBi |
| V.S.W.R: | <1.5 | Polarization Intensity: | R.H.C.P |
| Axial Ratio: | 3db(max) | Impedance: | 50ohm |
| Supply Voltage: | DC3.3-5.0V | Connector: | Customized |
| Cable: | RG174 | Cable Lenght: | 3meter |
| Port: | Shenzhen |

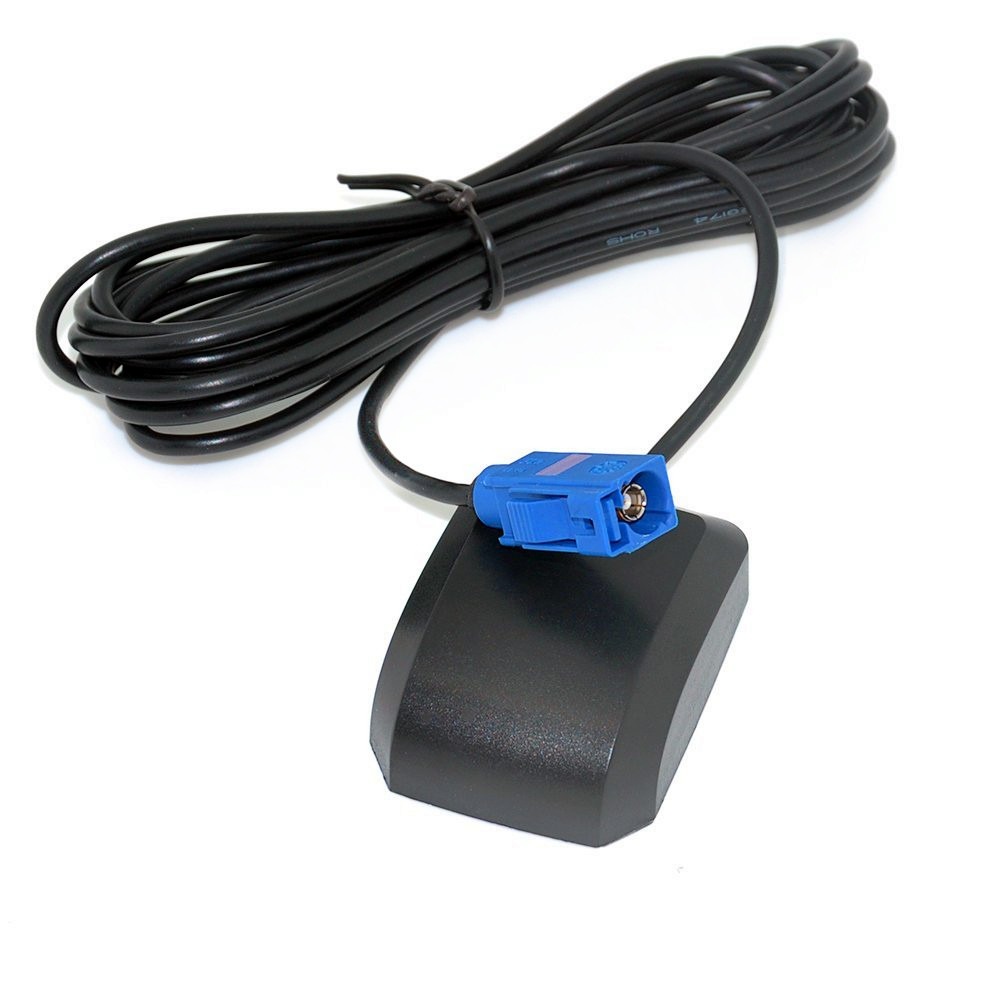

Stronger Signal: Our high quality car GPS antenna with Aerial Connection Port will help your GPS Navigation System pick up stronger and stable position signals info rapidly.
- Easy to install: The car GPS antenna has a magnetic base which can stick to any metal surface or just put it under windshield glass.
- Waterproof: It's no need to worry about it even in rainy day. The GPS antenna with extended cable allows you to place GPS antenna near a window without having to have whole unit be nest to a window.
- Cable length is 9.85 feet. Voltage is 2.7V to 3.6V DC.

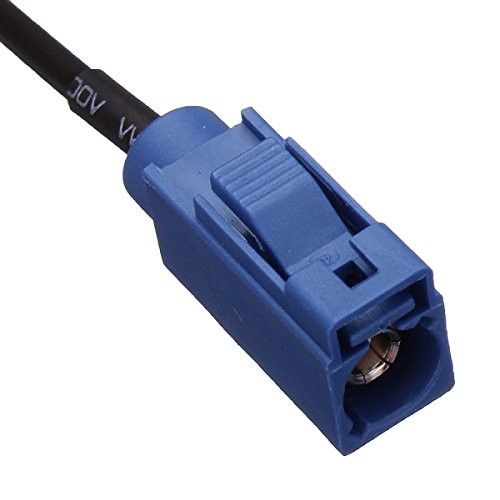

- Plug and Play and : Fakra Connector.
Specifications | ||||||
Center Frequency | 1575.42±1MHz | |||||
Band Width | CF±5MHz | |||||
Polarization | RHCP | |||||
Gain | 30dBi | |||||
V.S.W.R | ＜1.5 | |||||
Impendance | 50Ω | |||||
Axial Ratio | 3dB（max） | |||||
Size | 51*38.2*17.4mm | |||||
Noise Figure | ＜1.5 | |||||
Ex-band Attenuation | 12dB@CF+50MHz/16dB@CF-50MHz | |||||
Supply Voltage | 2.2~5V DC | |||||
Current Consumption | 5~15mA | |||||
Cable | RG174 | |||||
Connector | Customized | |||||
