| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Yetnorson |
| Model Number: | YNX-GPS-BK003 |
| Minimum Order Quantity: | 100 pieces |
| Price: | $3.25/pieces 100-9999 pieces |

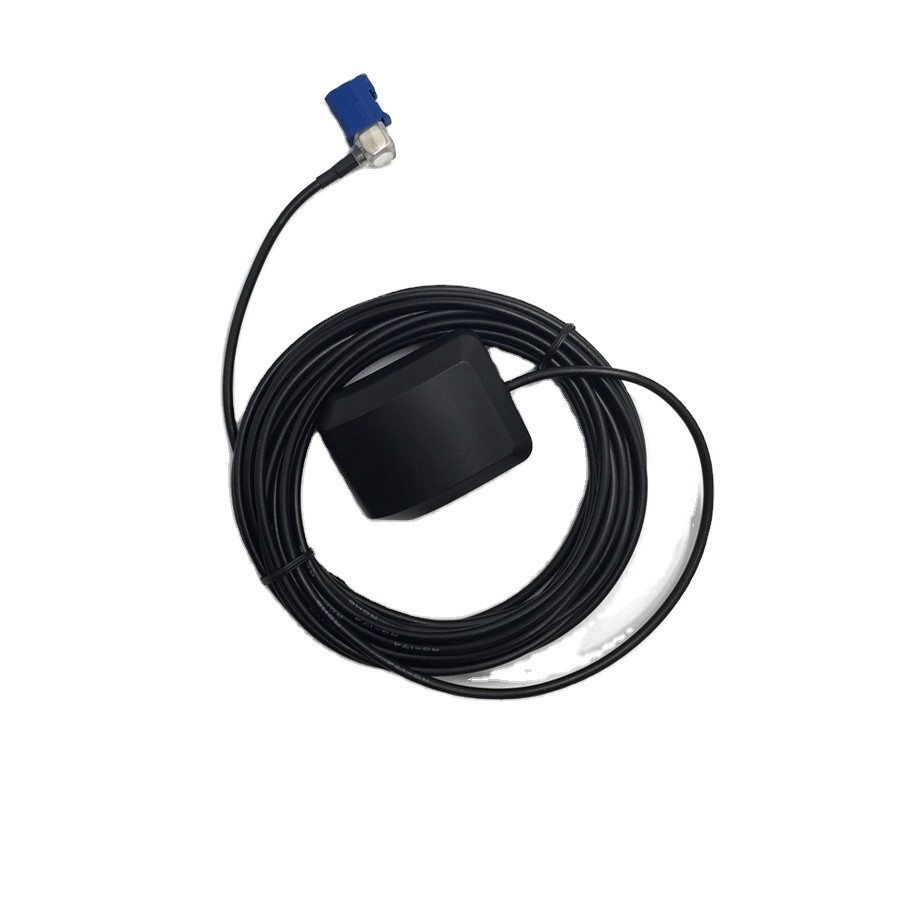

| Packaging Details: | One product with one PE bag, then 200pcs put into a carton packaging of 28dBi GPS Active Antenna with RG174 Cable 5 Meter Fakra for GPS Tracker with External GPS Antenna. |
| Supply Ability: | 2000 Chain/Chains per Day gps antenna |
| Type: | Combination Antenna | Frequency: | 1575.42/1602MHZ |
|---|---|---|---|
| Gain(dBi): | 28±3dBi | V.S.W.R: | ≤1.5 |
| Connector Type: | Fakra | Supply Voltage: | DC 3.3-5.0V |
| Input Impendence: | 50 Ω | Max Input Power: | 50 W |
| Service: | OEM&ODM | Polarization Inten: | R.H.C.P |
| Cable Length: | 3M/5M RG174 | Port: | Shenzhen |
Working Frequency | 1575.42/1602MHz |
Gain (dBi) | 28±3dBi |
V.S.W.R | ≤ 1.5 |
Polarization | R.H.C.P |
Radiation Direction | Omni Directional |
Impedance (ohms) | 50Ω |
Cable Type | RG174 |
Cable Length | 3/5 meter (Customizable) |
Connector | MCX/SMA/Fakra (Customizable) |
Connector Plating | Gold |
Dimension (mm) | 49x38.5x16mm |
Antenna Application | Tracking and Navigation |
Shenzhen Yetnorson Technology Co.,Ltd is one of the professional antenna maker focus on the development, design, manufacture, sale and Service of radio communications antennas. which has been dedicated to the antenna development likeGSM/CDMA/PHS/3G/4G antenna, 2.4GHz (wi-fi, wlan)/3.5GHz (wimax) /5.8GHz/wi-fi amplifier communication antenna serial(including: all direction, yagi antennas ,3G parabolic antennas, panel antenna, indoor antenna like: ceiling mount antenna, Wall Mount Antenna, desk antenna, double polar, rubber, bandwide, card mount serial antenna.
We also provide DVB-T/DMB-T/CMMB moving digital TV antenna, low frenquency antenna: 315MHz/433MHz wi-fi digital /wi-fi control /wi-fi wrote water meter /electricity meter antenna, GPS guide antenna, communicate parts, connector and so on. At present, Shenzhen Yetnorson Technology Co.,Lth.has developed more than 100 styles of antenna, with wi-fi internet, wi-fi electronic control, wi-fi end, wi-fi public telephone, wi-fi digital pass, wi-fi Satilla position, wi-fi Radio broadcasting communication field.
