This is waterproof IP65 GPS +glonass dual band antenna
There are Fakra A, Fakra B, Fakra C, Fakra D, Fakra E,Fakra F,Fakra G,
Fakra H, Fakra I, Fakra K, Fakra Z, Fakra L, Fakra M, Fakra N connector for option.
Antenna C
Application:
This is a new designed Amplified magnetic mount GPS antenna compatible with all Garmin GPS with FAKRA connector and draws less power than OEM antennas.
Gain is 28db typically, noise figure is 1.5db max, weight is 100g, current is 7mA at 2.5V and 12mA at 5V, operation temperature is -45 Degrees C ~ 85 Degrees C.
This antenna comes with FAKRA connector and about 9ft cable in small size (2"x1.5"x0.5"), waterproof, works great with all GPS products with FAKRA connector, such as Garmin 2,3,3+,3 pilot,V,176/176C,276C,95,95XL,StreetPilot,Streetpilot ColorMap,StreetPilot III,45,45XL,48,89,90,92,180,182,225,295,196,295etc.
And all other brands GPS comes with FAKRA connector.
1.specification of Car GPS Antenna l with SMA Fakra & 3M Extension Cable 174
| Frequency (MHz) | 1575.42MHZ/1602MHZ |
| Bandwidth (MHz) | 6MHZ |
| Gain (dBi) | 28dB±3dB |
| Input Impendence (Ω) | 50 |
| V.S.W.R | ≤1.7 |
| Consumption Electric | <10mA |
| Polarization Intensity | R.H.C.P |
| Supply Voltage | DC3.3~5.0V |
| The Sound Coefficient | ≤1.5dB |
| Max Input Power (w) | 50 |
| Operating Temperature | -40°C~+85°C |
| Storing Temperature | -40°C~+90°C |
| Cable length (mm) | 3000 |
| Connector Type | Fakra |
| Weight (g) | 69 |
| Fixed Mode | Magnet |

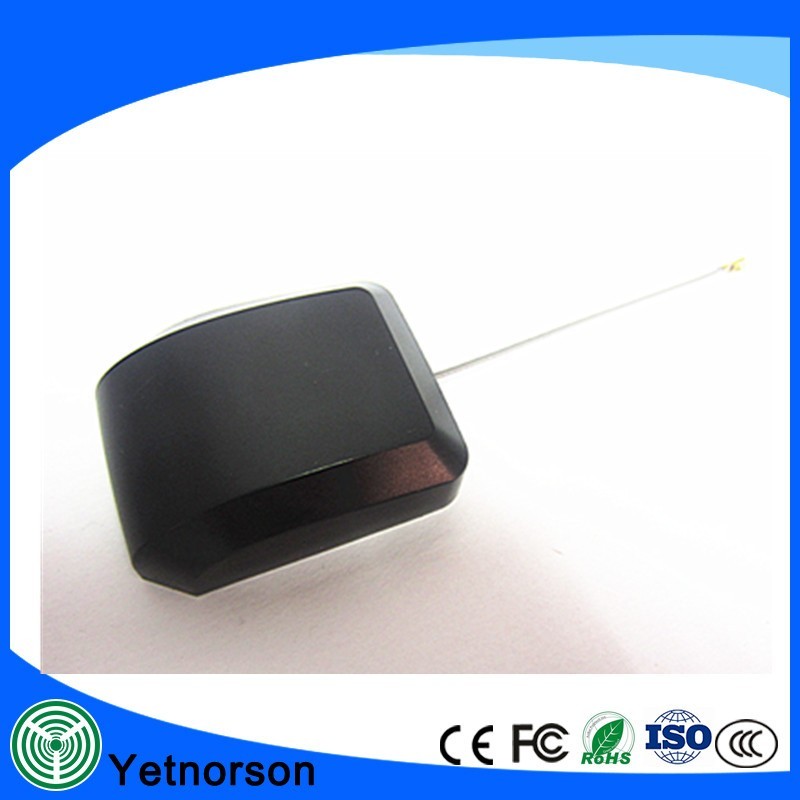

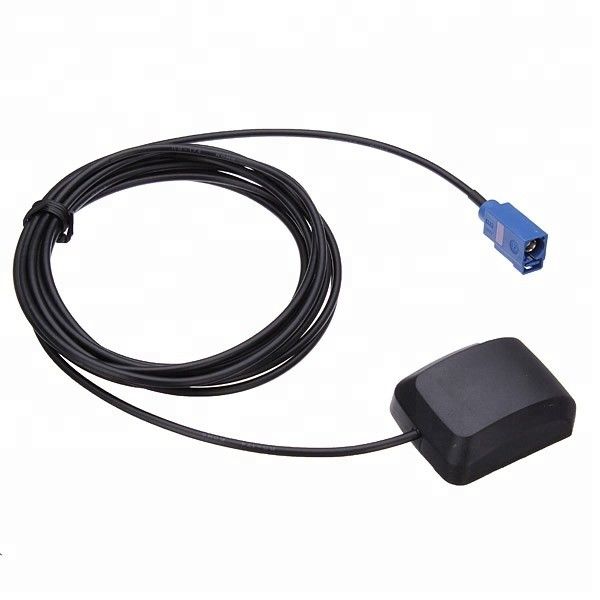

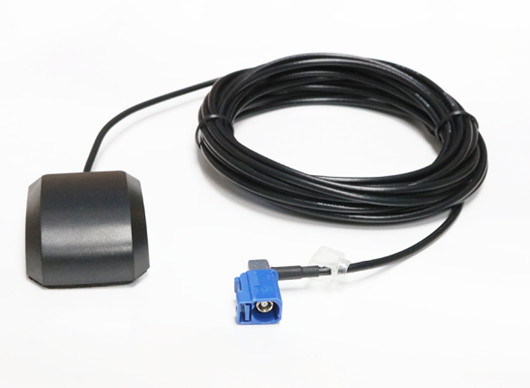

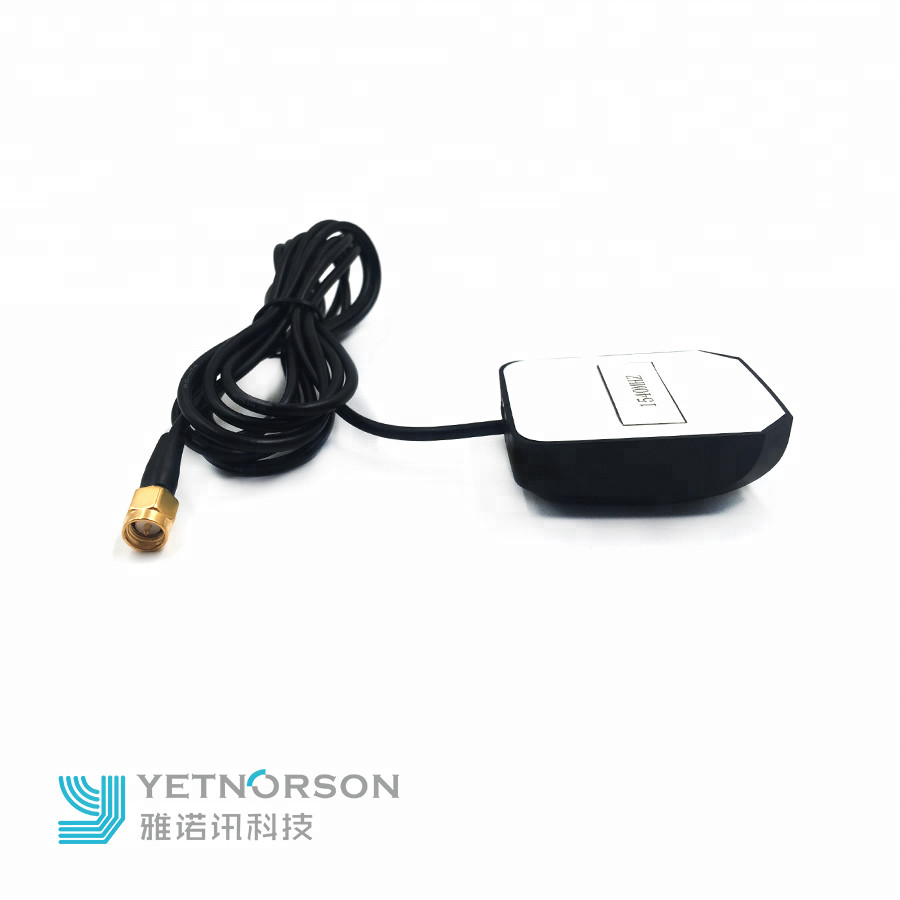

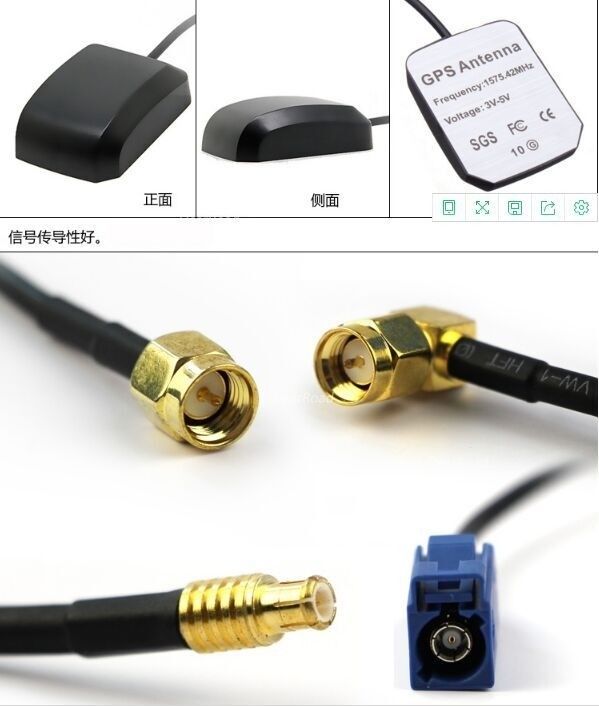

2.pictures of the Car antenna
GPS Tracker external antenn
