Detail Information

Type:	GPS/GNSS Antenna	Product Name:	Internal Ceramics Gps Glonass Antenna
Frequency (MHz):	1575.42MHZ±1.023/1602MHz	V.S.W.R:	≤1.5
Input Impendence (Ω):	50	Max Input Power (w):	50
Gain (dBi):	28dB±3dB	Supply Voltage:	DC3.3-5.0V
Polarization Intensity:	R.H.C.P	Cable Length:	15cm
Connector Type:	IPEX /UFL Connector

Product Description

Products Description

Working Frequency	1575.42/1602MHz
Gain (dBi)	28dBi
V.S.W.R	≤ 1.5
Polarization	R.H.C.P
Radiation Direction	Omni Directional
Impedance (ohms)	50Ω
Cable Type	1.13 cable
Cable Length	150mm(Customizable)
Connector	IPRX(Customizable)
Connector Plating	Gold

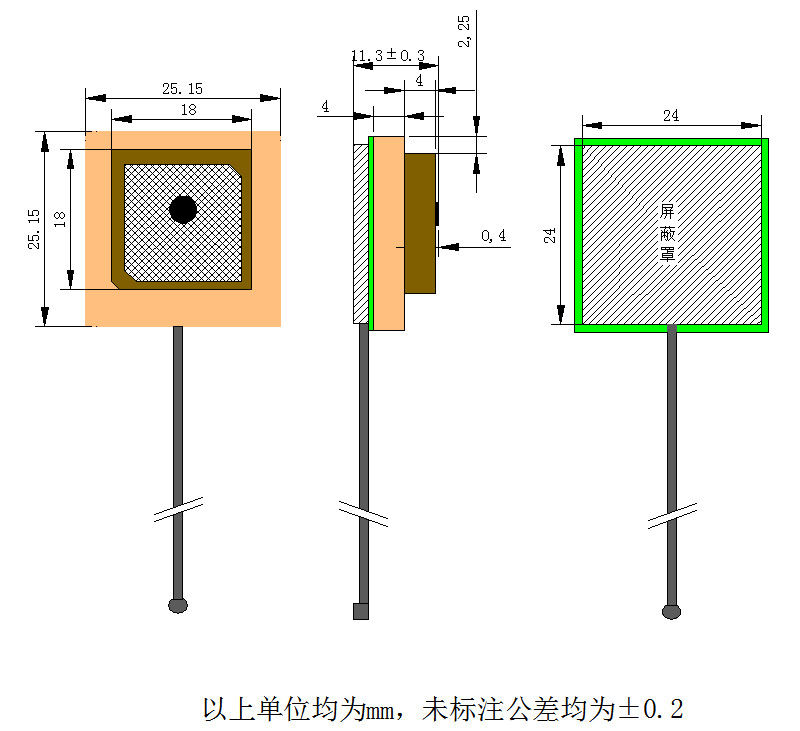

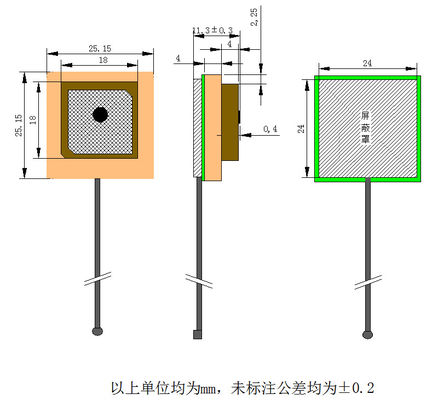

Dimension (mm)	25258mm
Antenna Application	Tracking and Navigation

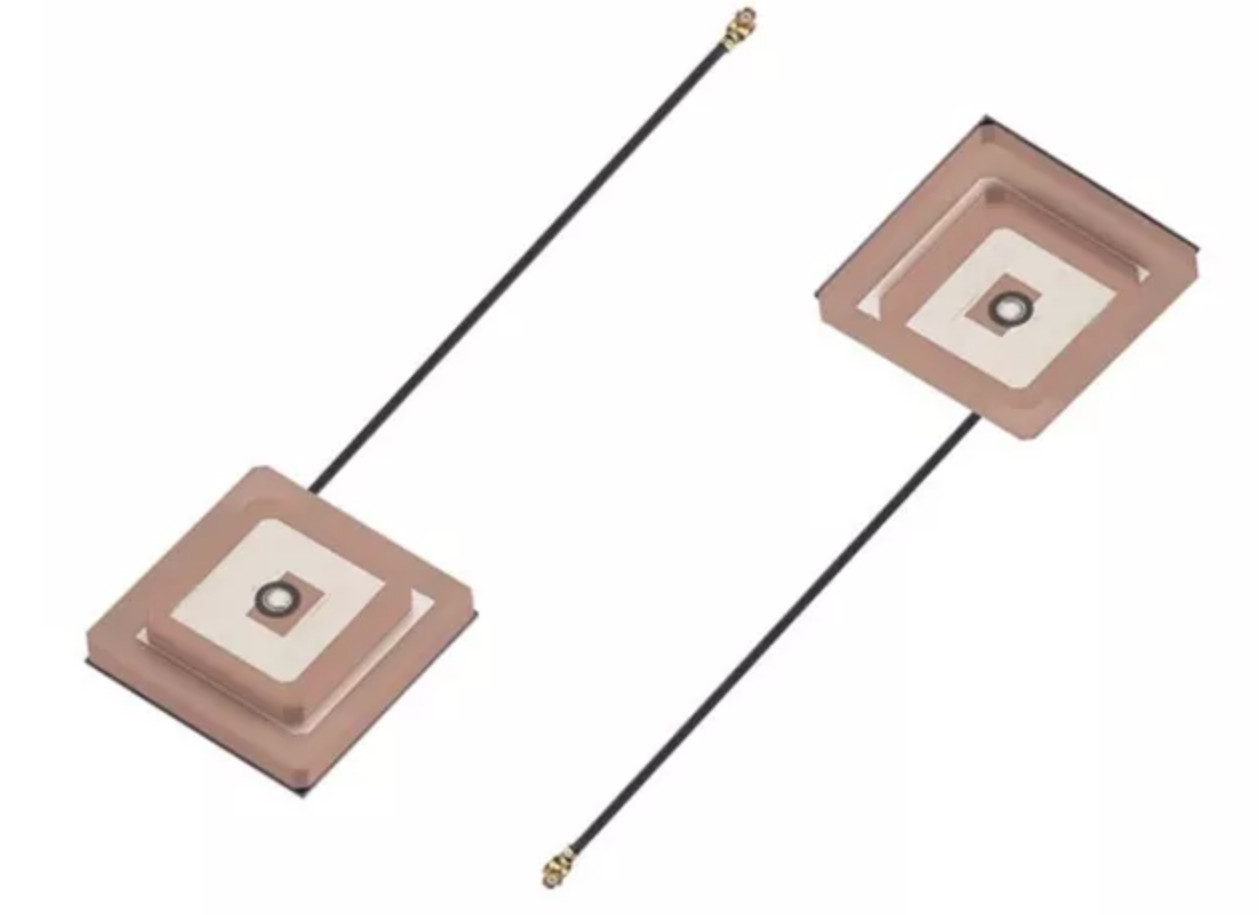

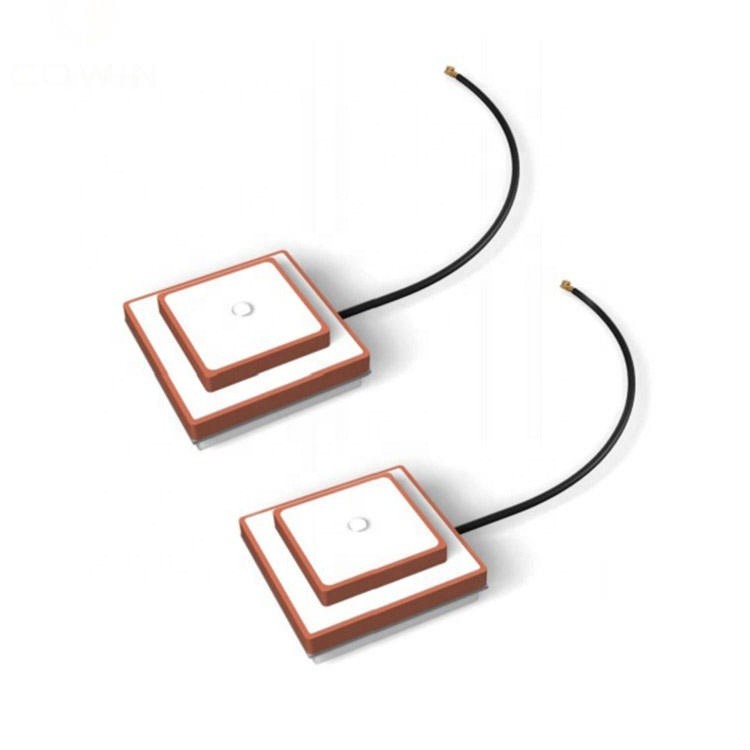

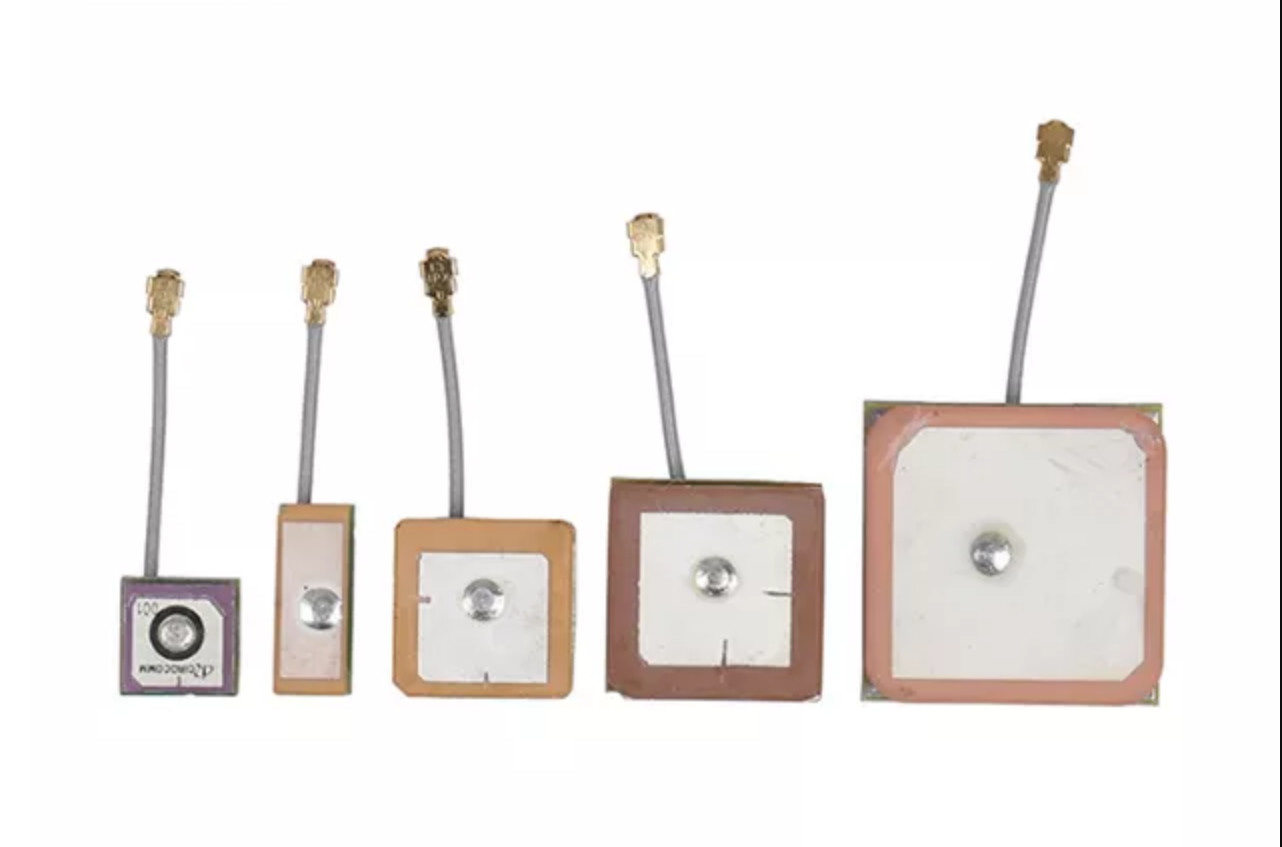

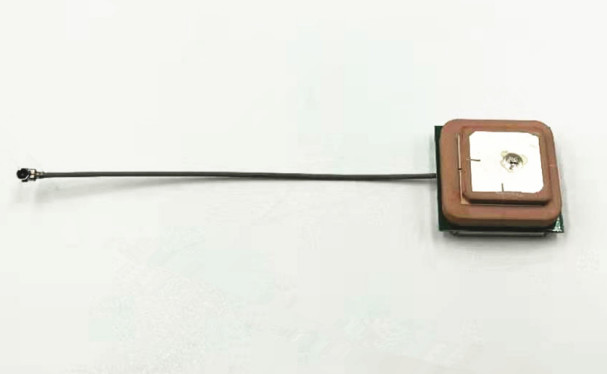

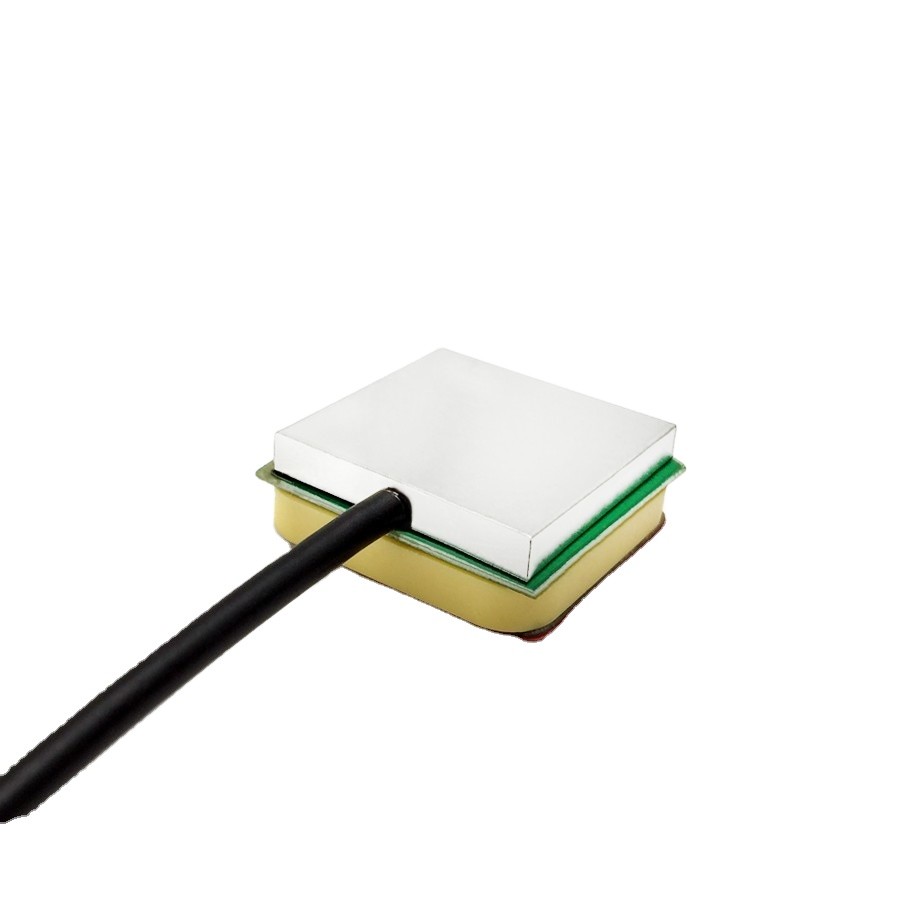

Product Pictures

Return Loss

Smith chart

VSWR
