Detail Information

Type:	GPS/GNSS Antenna	Frequency:	Gps Glonass 1602MHz/1575.42mhz
Gain(dBi):	29dBi	V.S.W.R:	≤1.5
Input Impendence:	50 OHM	Connector Type:	SMA /FAKRA /USB
Cable Type:	RG174 3m-5m	Polarization Inten:	R.H.C.P
Supply Voltage:	DC 3.3-5.0V	Service:	OEM&ODM
Products Name:	Gps Glonass Antenna	Port:	Shenzhen

Product Description

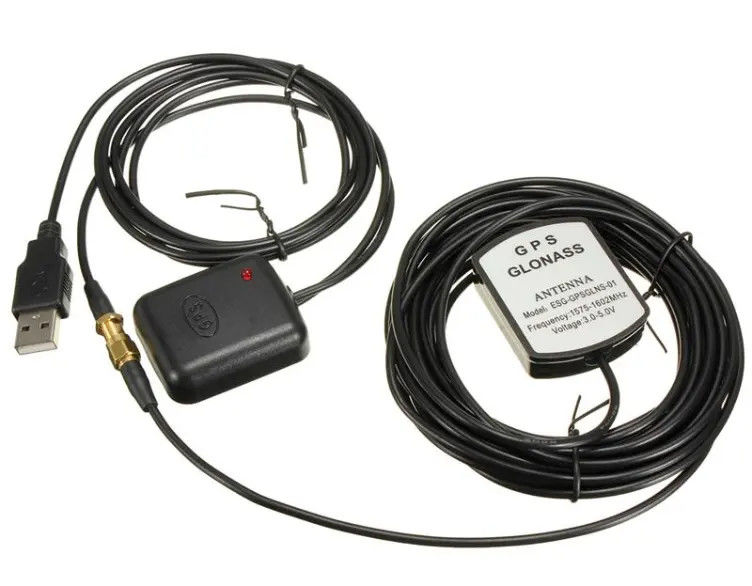

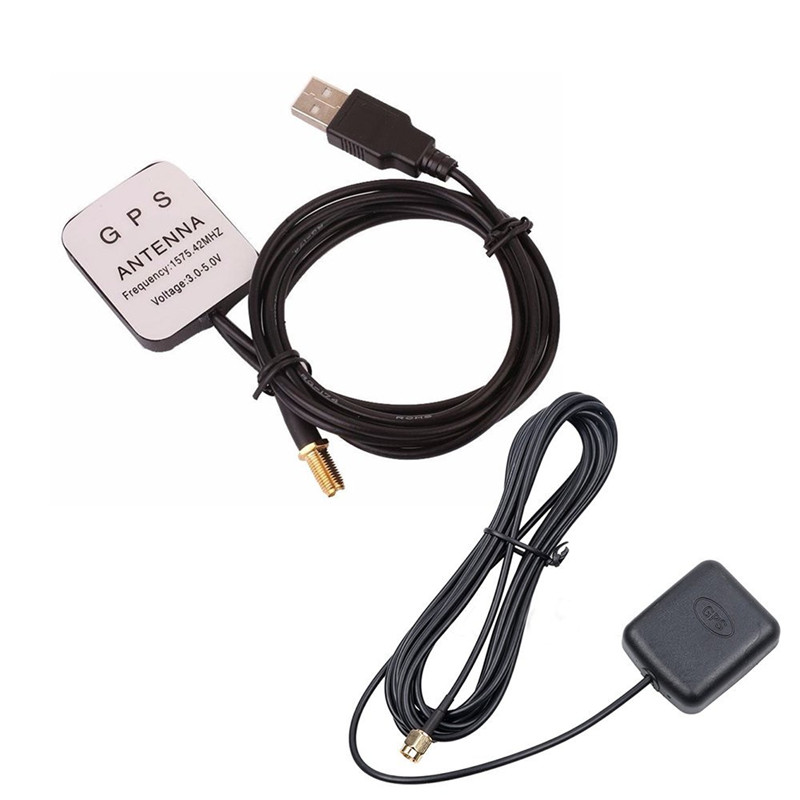

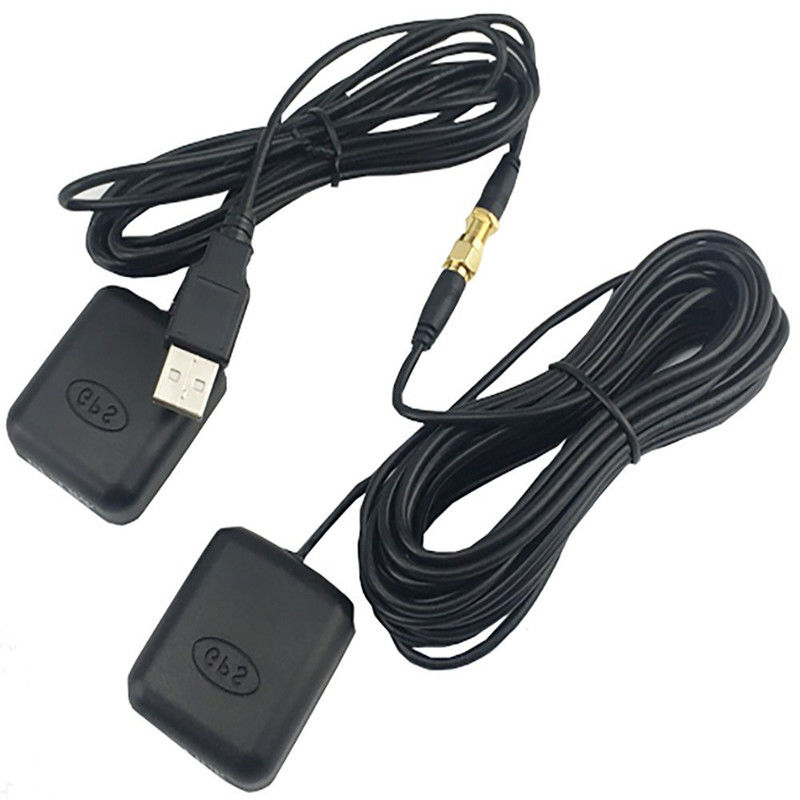

Detailed Images

Features:

^{-USB port GPS receiver
-Can be used for common smart mobile phone/laptop/desktop computer/tablet PC...
-Water resistant IP64
-Mounting magnetic base}

Specification:

^{-Center Frequency(MHz): 1575.42
-Bandwidth(MHz): 6
-Input Impendence(Ω): 50
-V.S.W.R: <1.5

-Antenna Size (mm) 49*39*15mm
-Consumption Electric: <15mA
-Polarization Intensity: R.H.C.P
-Supply Voltage: USB 5V
-The Sound Coefficient: <1.5dB
-Axial Ratio: 30Db
-Gain(dBi): 29dB±3dB(LNA)
-Operating Current: < 20mA

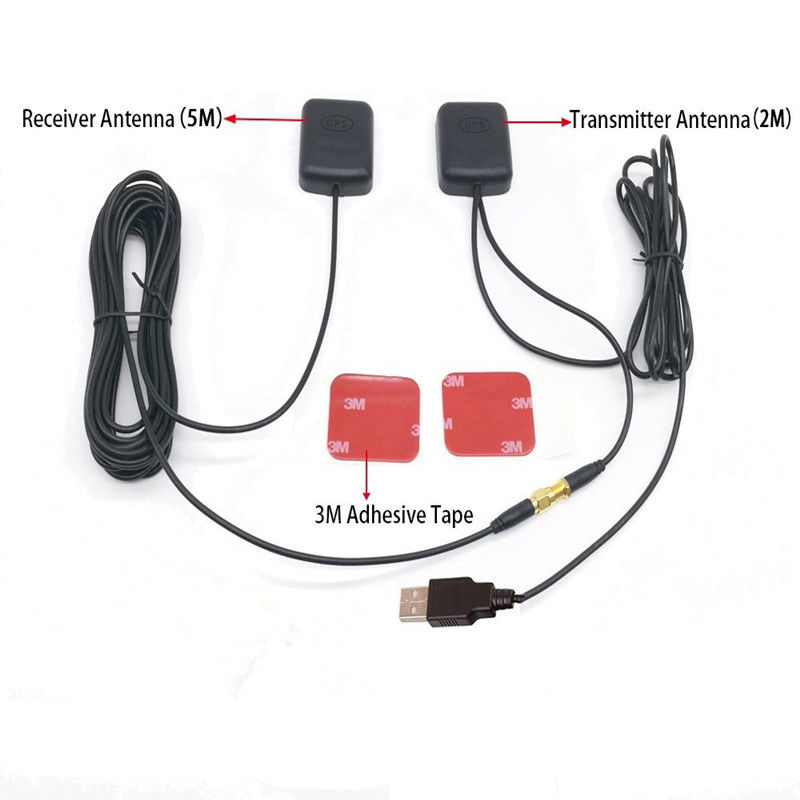

-Cable Length approxi. 5M/15FT(receiver part)+ 2M/6FT(transmitter part)}

-Inductive antenna installation:

^{The receiver in the car by the adsorption position of the trunk; Cable into the car from the rear door or the back seat of the car
door , and then go to the next floor mats beneath the center console , connect the transmitter, the transmitter is placed above
the center console storage box , or , finally received through the power to work.

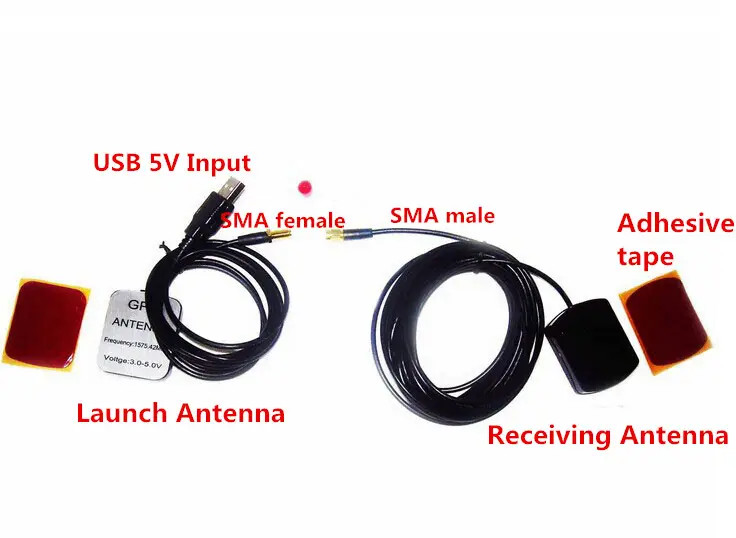

-Power plug: USB plug interface provide voltage antenna, supporting Mini car cigarette lighter to USB power plug

-Receiver: Mounted on the vehicle , the vehicle receives a strong GPS signal , and amplified for transmission to the vehicle .

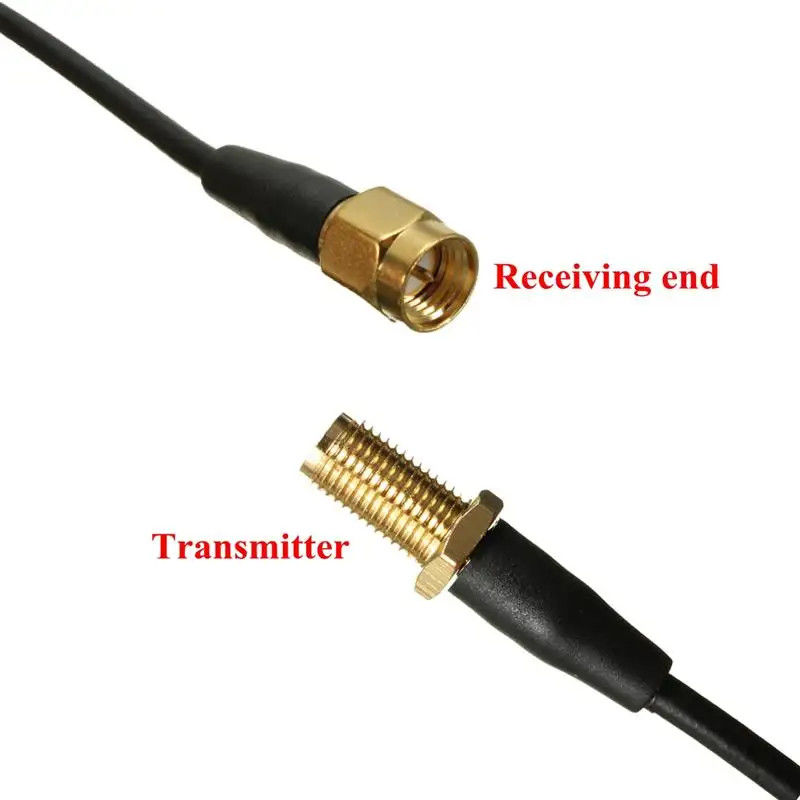

-Transmitter: Mounted in the vehicle , after the receiver amplifies the signal transmitted again transmitted to the car, so the
car navigator receives the equivalent of three or four times external signal strength .}

Installation Guide:

^{1. The receiving end of the upper magnets mounted outside the vehicle trunk , facing the reception .

2. The transmitter installed in the center console under the windshield or front passenger storage compartment , pay attention to
the emitting surface ( black shell surface ) for GPS Location of the device ( navigator ) is located, and to ensure that the
transmitter from GPS Less than one meter from the device , the transmitter and GPS No metal block between devices in order to
achieve the best results.

3. After he receiver and the transmitter is installed, connect USB power partwith the cigarette lighter ( input voltage DC16V Or
less ), power side indicator light , which means that work properly, then start GPS Equipment.}

Hot selling product (88% of people buy it together)

Company Profile

Yetnorson Antenna Co., Limited is an antenna factory with 12 years of experience in manufacturing antennas. It is a national high-tech enterprise and a 5A-level credit enterprise.

Our factory covers an area of 12,000 square meters, has two workshops and 8 production lines and has a production staff of 352 people, to ensure fast and timely delivery; there are 32 professional business teams to guarantee you professional product services; there are 8 professional engineering teams and tens of millions of testing and production equipment; has 36 antenna patents, all All products have passed ISO/FCC/CE/ROHS certification!

We can customize packaging, patterns and free logo printing, your goods can track the progress at any time, welcome to visit our factory or video tour at any time!

Mechanical Equipment

Storehouse

Certifications

FAQ

Q: I want to increase the popularity of our products, can I print the logo on the product?

A: Of course, no matter how many MOQs,we can print the logo for free.

Q: I want to know the production progress of my goods .
A: We will take photos or videos to tell you the progress of your goods at every stage from production to shipment.

Q: Can we customize it?
A: You can customize the packaging, pattern, color, cable length and other needs of any customer and we will try our best to meet it.

Place of Origin:	Guangdong, China
Brand Name:	yetnorson
Model Number:	ynx-gps-017

Minimum Order Quantity:	2 chains
Price:	$1.56/chains 2-99 chains
Packaging Details:	One product with one PE bag packaging of bluetooth gps glonass antenna
Supply Ability:	2000000 Piece/Pieces per Week
