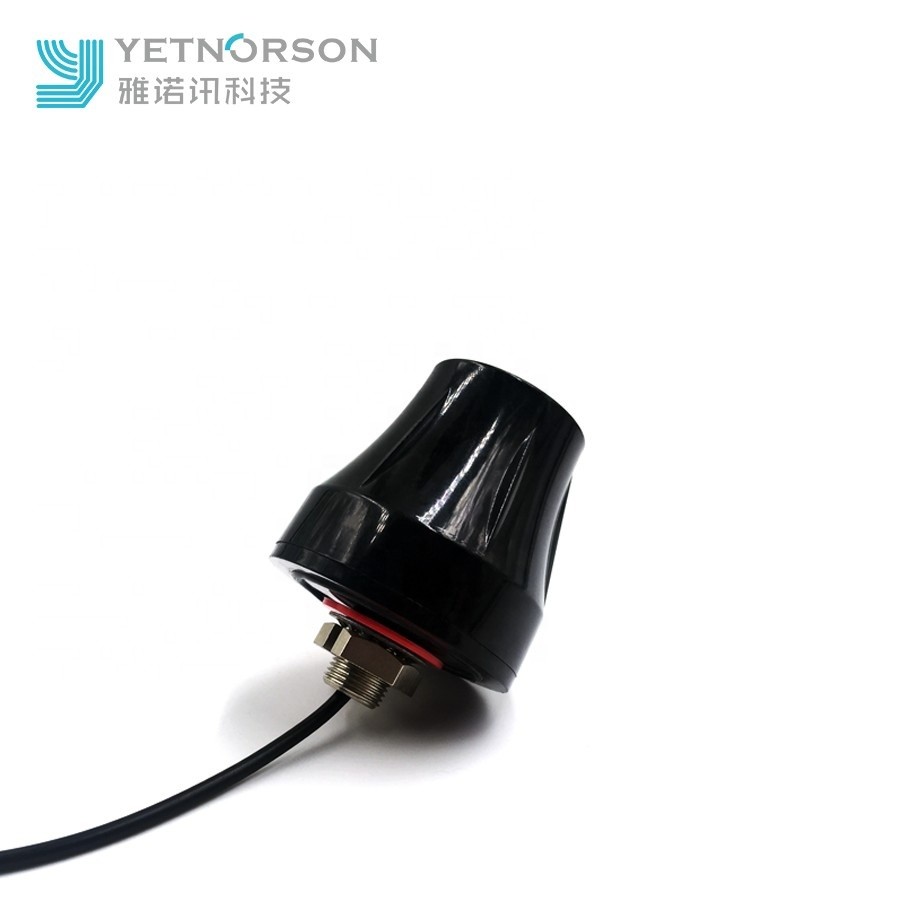

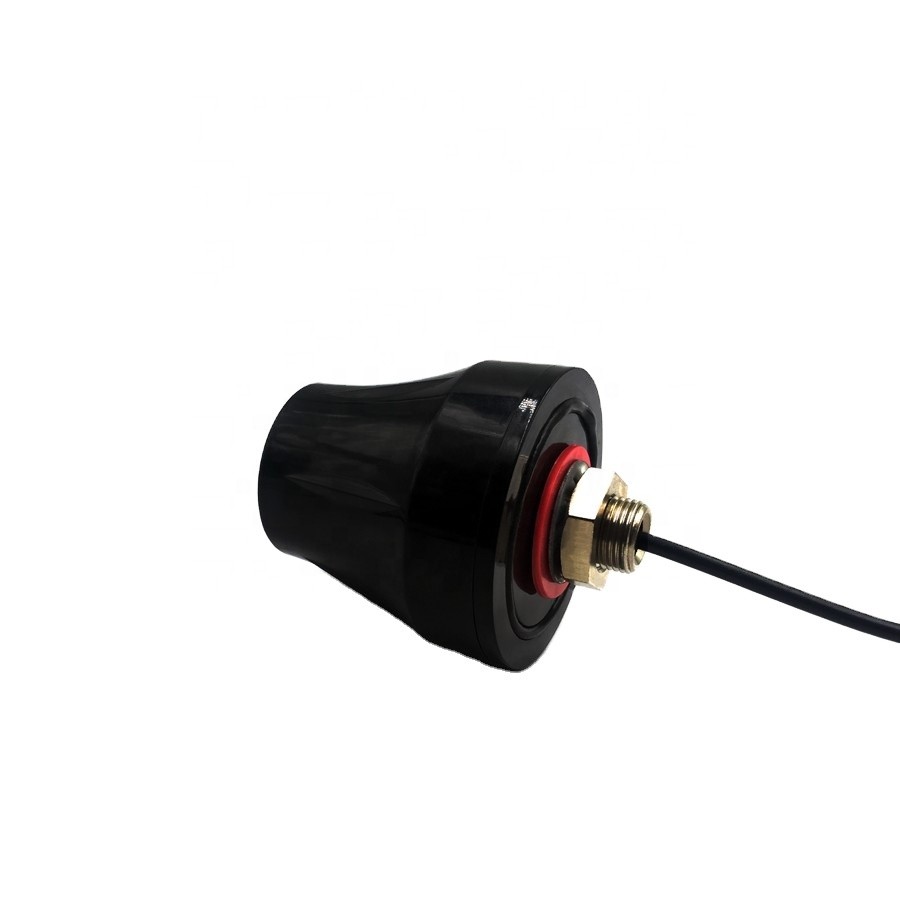

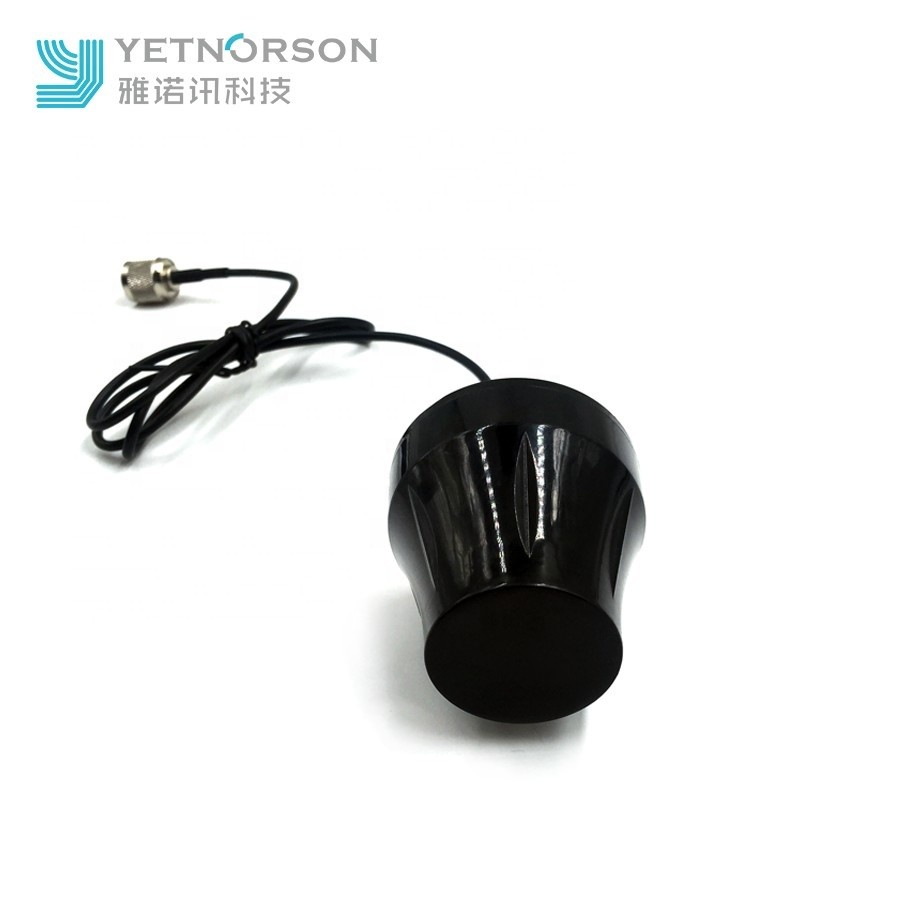

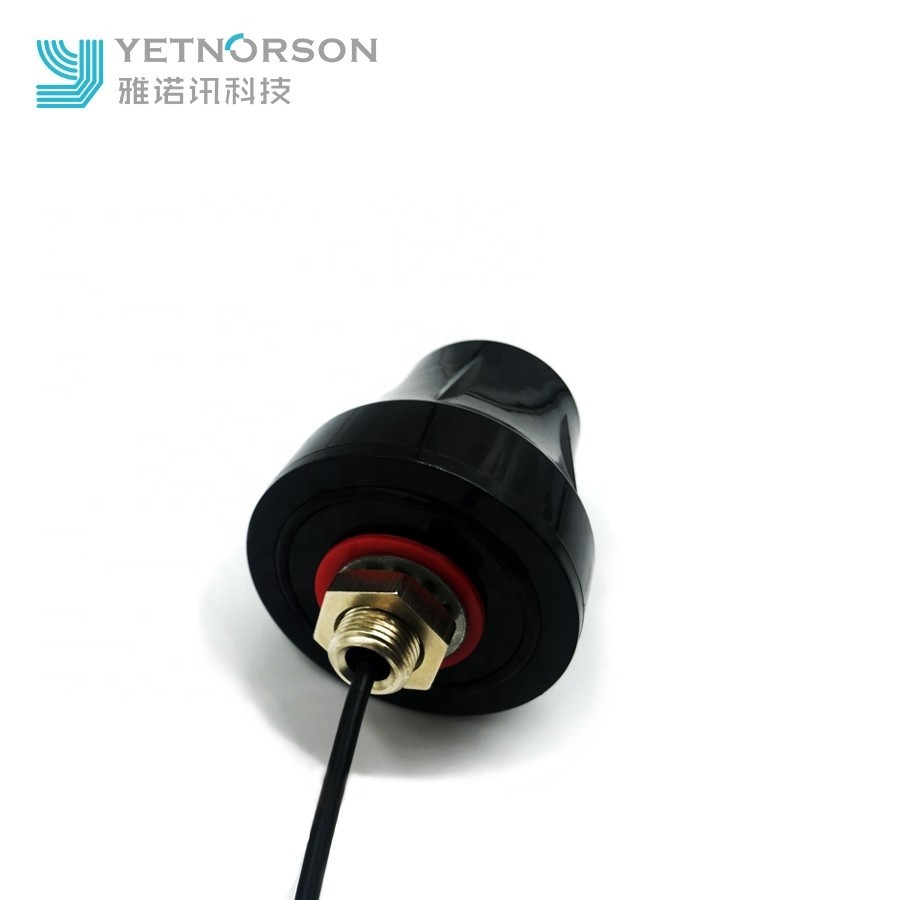

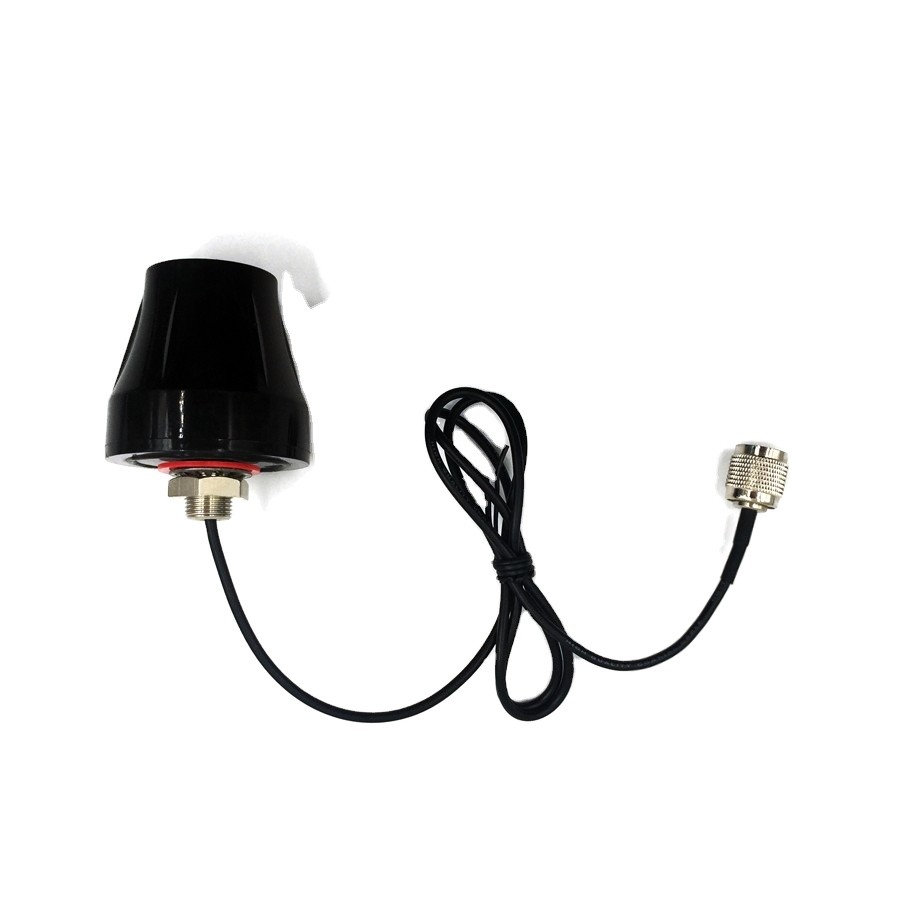

The antenna is specially designed and produced for the terminals of cellular mobile communication system and satellite navigation.
system. It is light in structure and beautiful in appearance, and easy to install.
| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Yetnorson |
| Model Number: | YNX-GPS-104 |
| Minimum Order Quantity: | 100 pieces |
| Price: | $1.80/pieces 100-9999 pieces |
| Packaging Details: | One product with one PE bag of GPS antenna onboard GPS positioning antenna 1575.42mhz navigation antenna for car |
| Supply Ability: | 20000 Piece/Pieces per Day |
| Frequency Range: | 1575.42 Mhz | Gain: | 29dBi±3dBi |
|---|---|---|---|
| Impedance: | 50Ω | Polarization: | R.H.C.P |
| VSWR: | ≤1.5 | Supply Voltage: | DC2.5-5V |

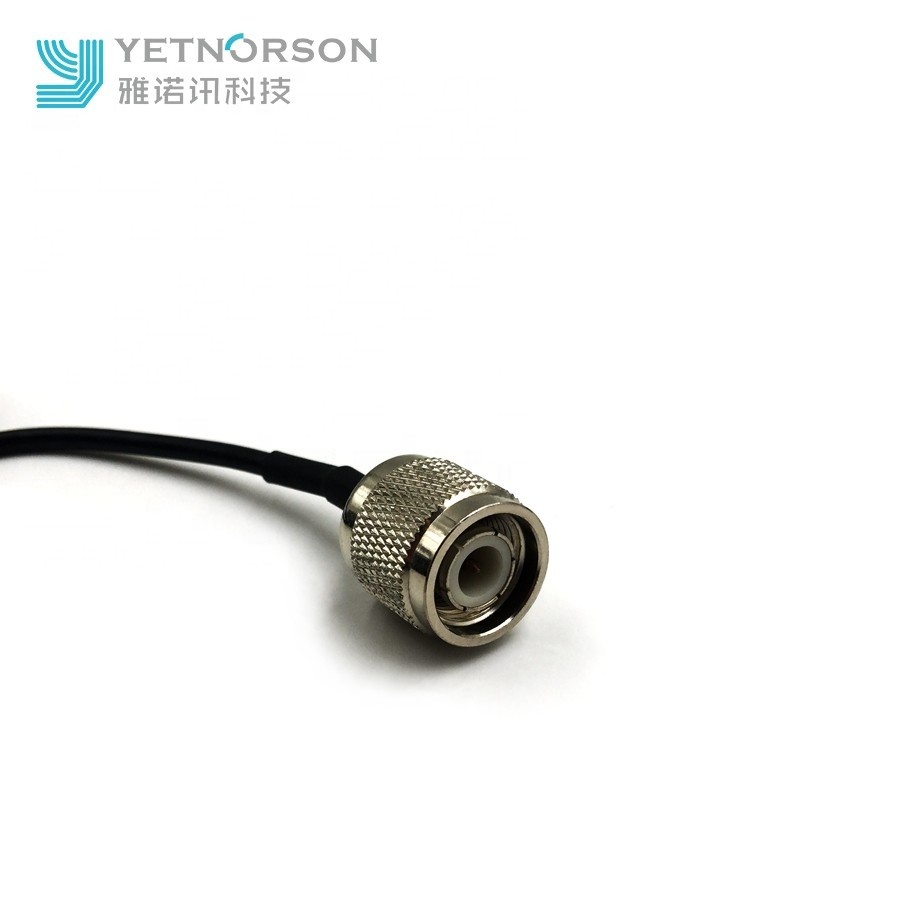

| Connector Type: | N /customized | Bandwidth MHz: | 10MHZ |
| Service: | OEM ODM Accept | Color: | Black |
| Port: | Shenzhen |
Electrical Specifications | ||
Frequency Range (MHz) | 1575.42MHz | |
Gain (dBi) | 29dB±3dBi | |
Bandwidth (MHz) | 10MHZ | |
Input Impedance (Ω) | 50Ω | |
V.S.W.R | ≤ 1.5 | |
Polarization Type | Vertical | |
Power Capacity (w) | 50w | |
Supply Voltage | 2.5-5V | |
Cable Length(mm) | 3m | |
Mounting | Sticker | |
Operating Temperature | -40℃～+85℃ | |
