| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Yetnorson |
| Model Number: | YNX-4G-0011 |
| Minimum Order Quantity: | 500 pieces |
| Price: | $1.75/pieces 500-999 pieces |
| Packaging Details: | box package of 4G LTE 11dBi External TS9 magnetic Antenna |
| Type: | RFID/NFC Antenna | Frequency: | 600-2700mhz |
|---|---|---|---|
| Gain: | 5dBi | Impedance: | 50 Ohm |
| Maximum Input Power (W): | 50 | VSWR: | 1.5 |
| Polarization: | Vertical | Color: | Black |
| Connector: | Customized | Cable: | RG174 3meter |

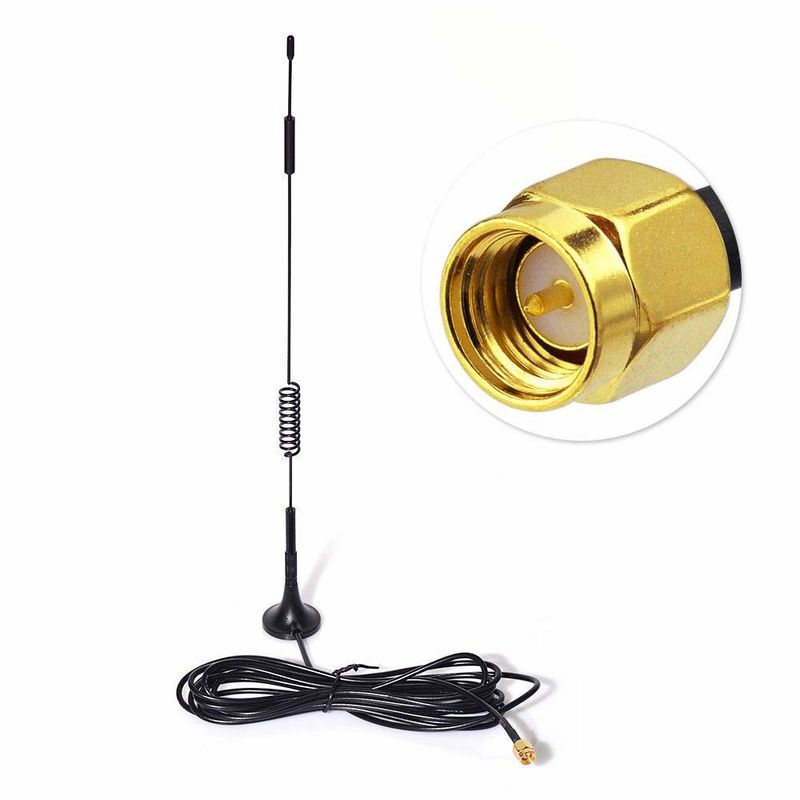

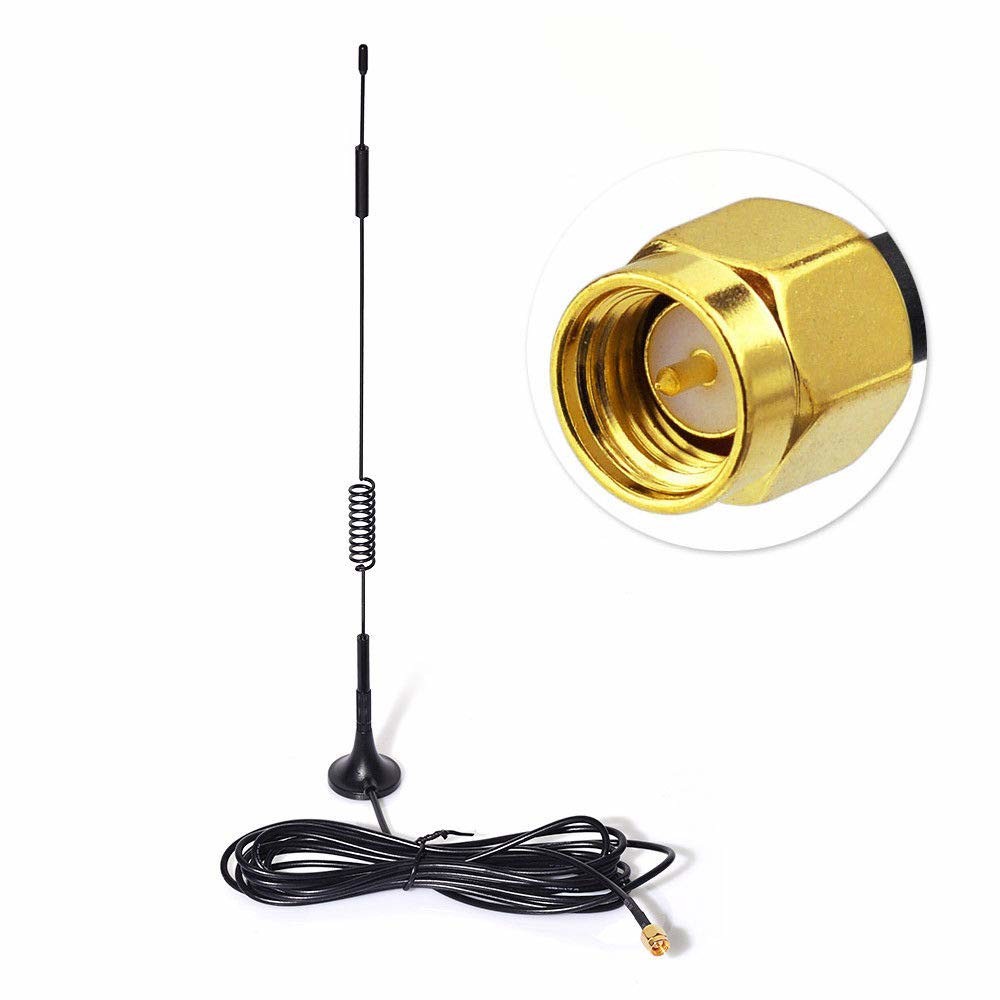

Connector: SMA Male, this newest 4G network reception long range antenna, which is great for your access points and are compatible with many models
Frequency Range(MHz): 700-2700(MHz), you can get maximum omnidirectional wireless coverage and reliability
Improved signal: with powerful enhanced signal, you can get high gain signal in weak internet environment

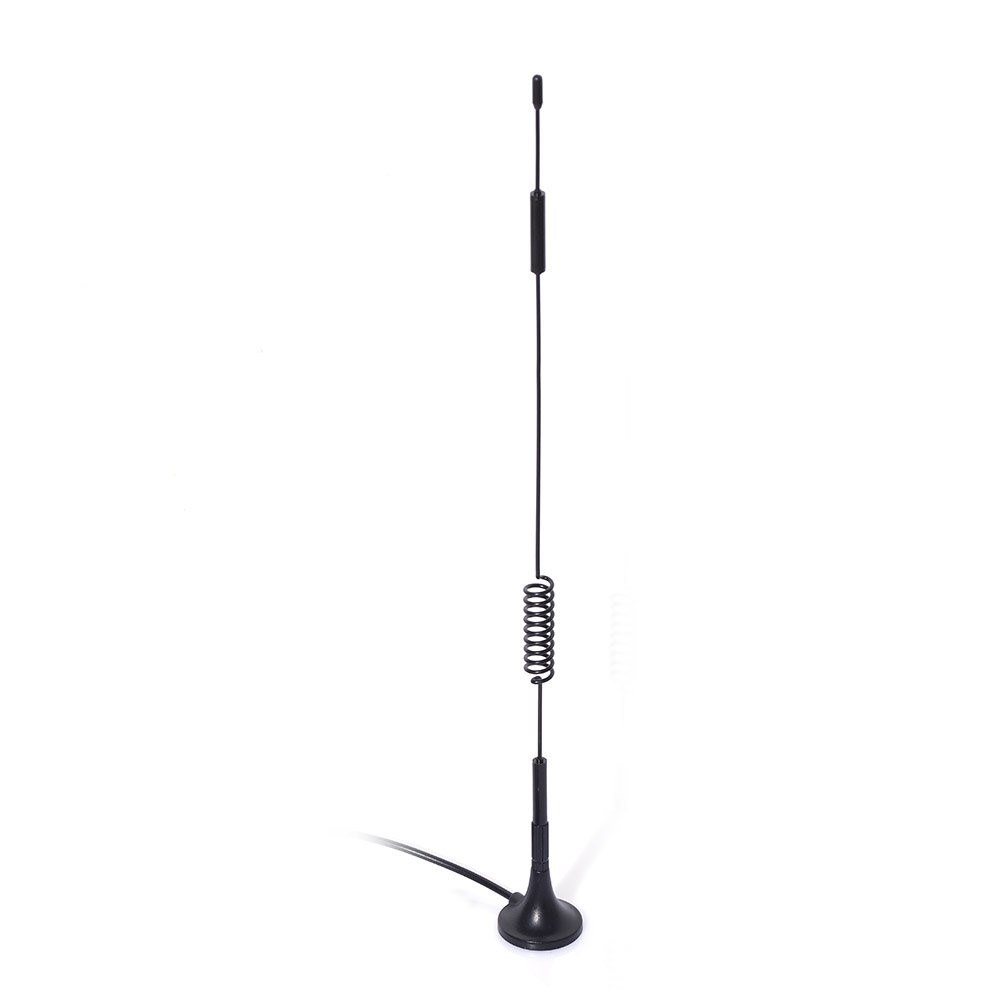

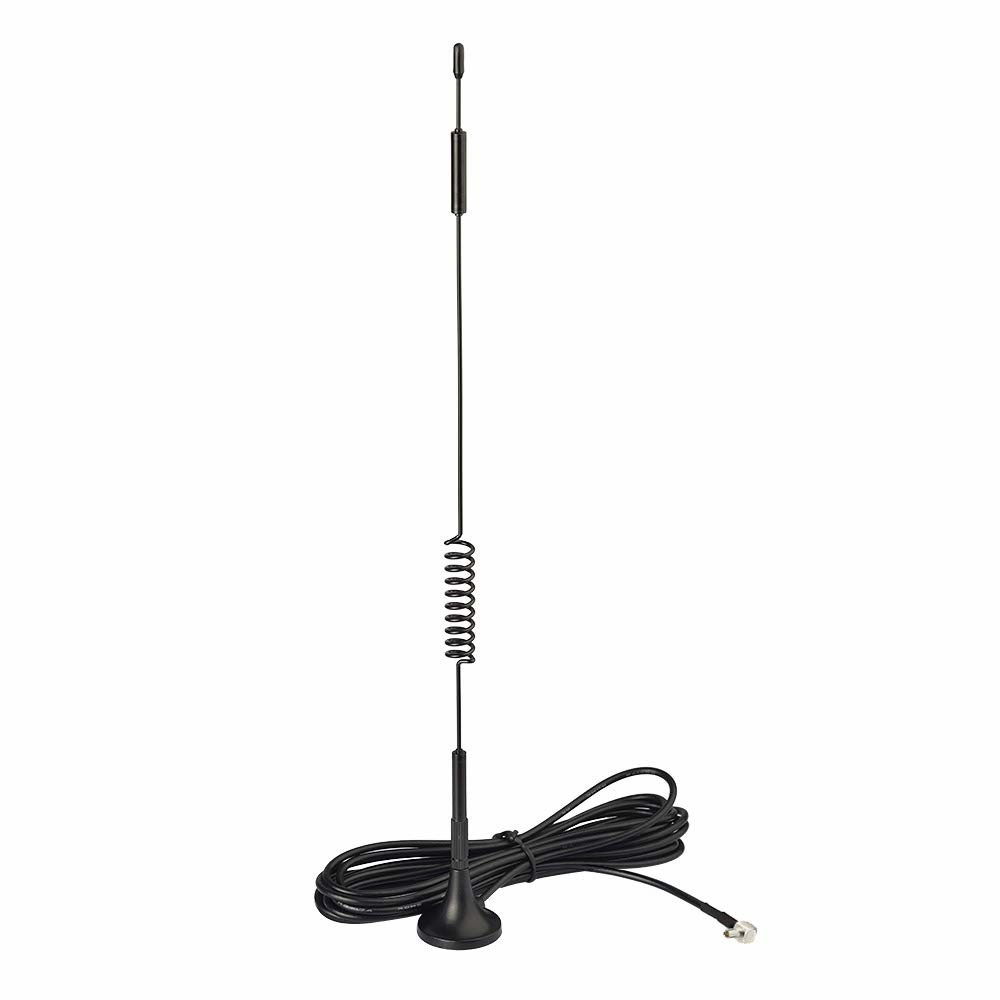

Simple installation: with Magnet base and long connector wire, you can place this antenna anywhere you like
No drivers: with this antenna, you need not to install any other drivers, you can take this antenna for enhanced signal for outdoor activites
Electrical Specifications | ||||||
Frequency Range (MHz) | 600-2700 | |||||
Bandwidth (MHz) | 100~700 | |||||
Input Impendence (Ω) | 50 | |||||
V.S.W.R | ≤1.5 | |||||
Gain (dBi) | 7 | |||||
Polarization Type | Vertical | |||||
Power Capacity (w) | 50 | |||||
Antenna Length (mm) | 380 | |||||
Cable length(mm) | 3000 | |||||
Connect Type | SMA-MALE | |||||
Radome Color | Black | |||||
Weight (g) | 85g | |||||
Shenzhen Yetnorson technology Co., LTD. as one of the emerging high-tech enterprise, who is one of the leader engaged in the antenna products, customer service and R&D design. Our main products at GSM/GPS/CDMA/DVB-T/DMB-T/DAB-T/ISDB /PHS / 3 G / 4 G /5.8G, 2.4 GHz (WIFI, wireless local-area network (wlan)-/ 3.5 GHz wimax (5.8 GHz) / wireless spread spectrum communication series.
Our ordinary package is one piece in a PE bag/750pcs in a 66*52*41cm Carton, total gross weight: 35.7kg/ Carton
Delivery time is about 7-15 days after receiving your payment.
1. Why do you order from Yetnorson?
Yetnorson can provide you one-stop shopping with wholesale price.
2. How can we promise you the quality?
Each of our products will be tested 35 times before it shipped,
QC from third department is highly welcome.
3. Why the goods take so long to arrive my place?
That depends on the way of shipment.
If by ship, it is no wonder that will take longer time to arrive you compared with air.
4. How can i select the goods and know the price?
Contact with us by trademanager, email or phone.
Tell us the details of the product you need, then we will reply you within 24 hours.
