| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | yetnorson |
| Model Number: | YNX-4g antenna-01505 |
| Minimum Order Quantity: | 100 pieces |
| Price: | $1.00/pieces 100-499 pieces |
| Packaging Details: | One product with one PE bag packaging of made in china modem 4g router indoor omni 4g external lte antenna |
| Type: | 2.4GHz & 5GHz Antenna | Frequency Range (MHz): | 600mhz-2700mhz |
|---|---|---|---|
| Bandwidth (MHz): | 400mhz | Polarization Inten: | Vertical |
| V.S.W.R: | ≤1.5 | Gain (dBi): | 5dB |
| Input Impendence (Ω): | 50ohm | Supply Voltage: | 3.5-5.5V |
| Power: | 50w | Connect Type: | Customized |
| Antenna Color: | White/black |
| Electrical Specifications | |
| Frequency Range (MHz) | 698mhz-2700mhz |
| Input Impendence (Ω) | 50ohm |
| V.S.W.R | ≤1.5 |
| Gain (dBi) | 5dBi |
| F/B Ratio | ≥15dB |
| Horizontal Beam width | 60°-90° |
| Vertical Beam width | 70°-70° |
| Polarization Type | vertical or horizontal |
| Power Capacity (w) | 50w |
| Mechanical Specifications | |
| Antenna length | 17cm |
| Connector | Customized |
| Antenna color | white /black |
| Mounting Mast Diameter | Ø10mm |
| Rated Wind Velocity | 210Km/h |
| Operating Temperature | -40°C to+80°C |
| Radome Material | UV protected ABS |
| Storage Temperature | -65°C to+85°C |

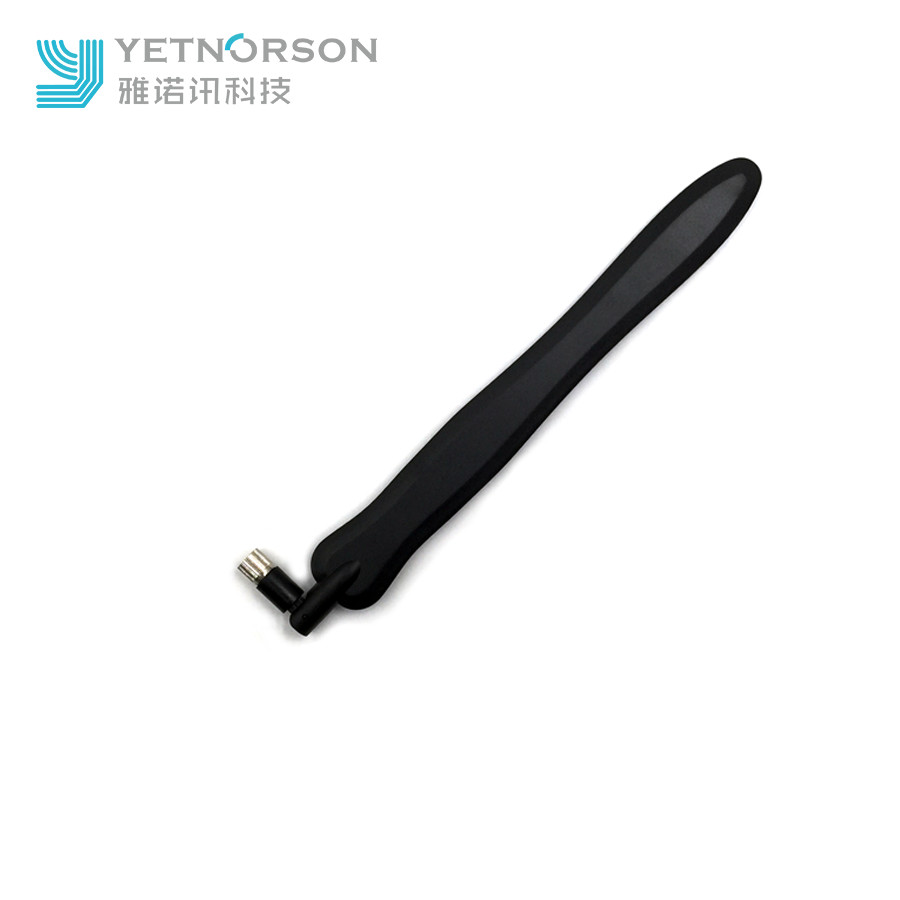

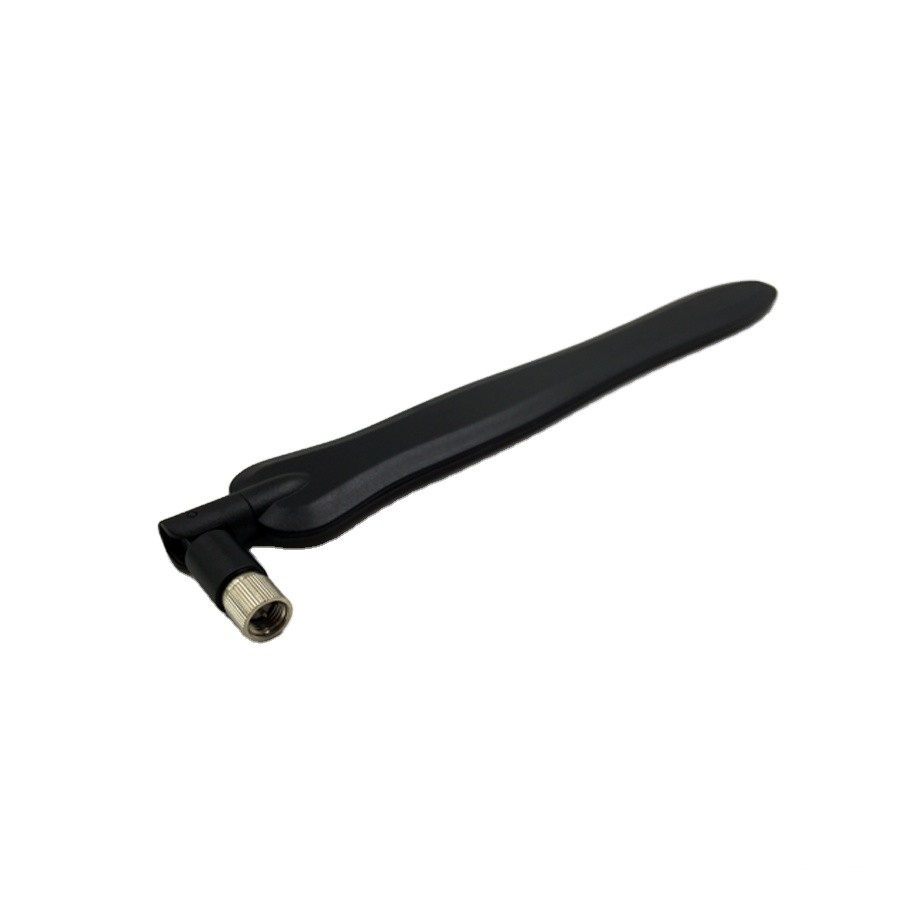

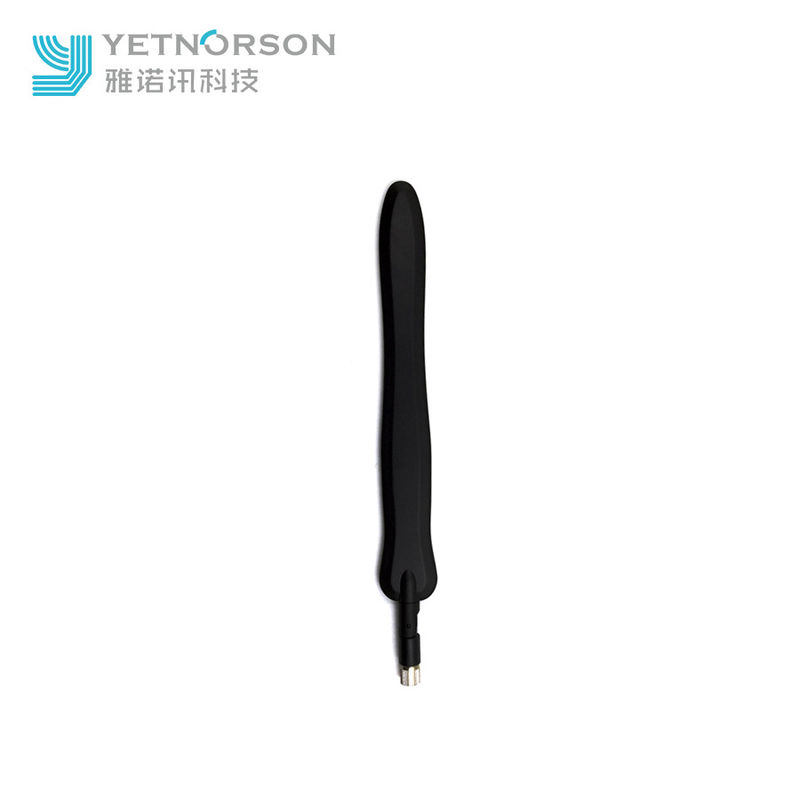

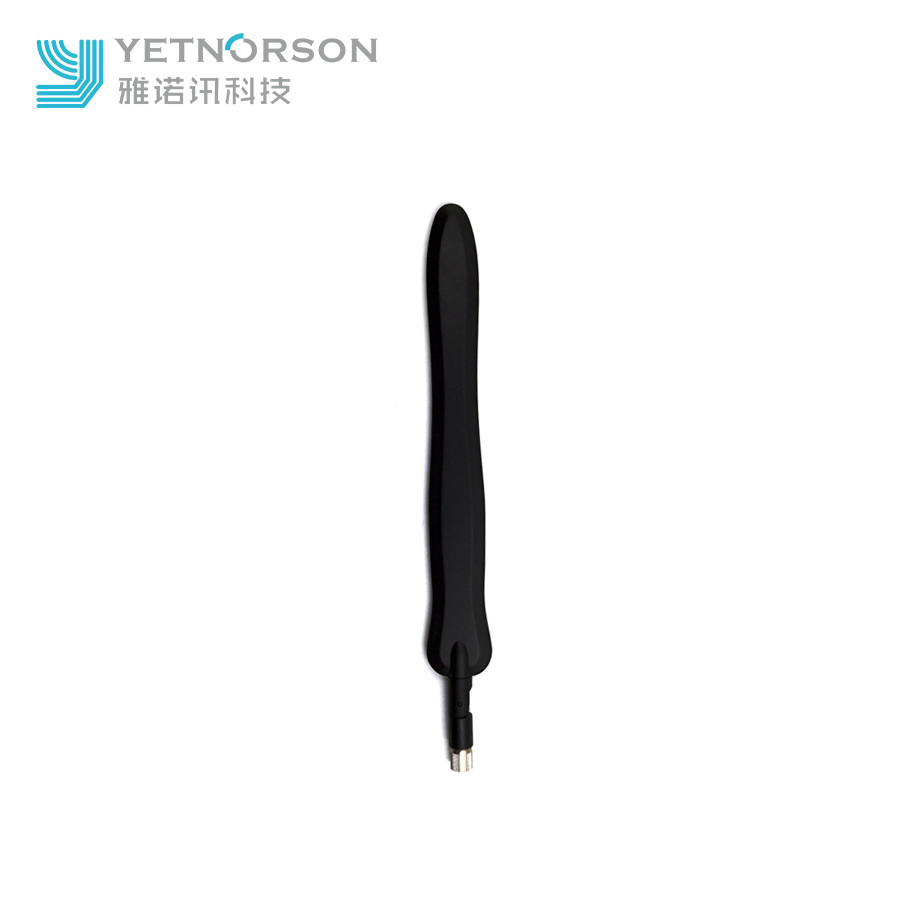

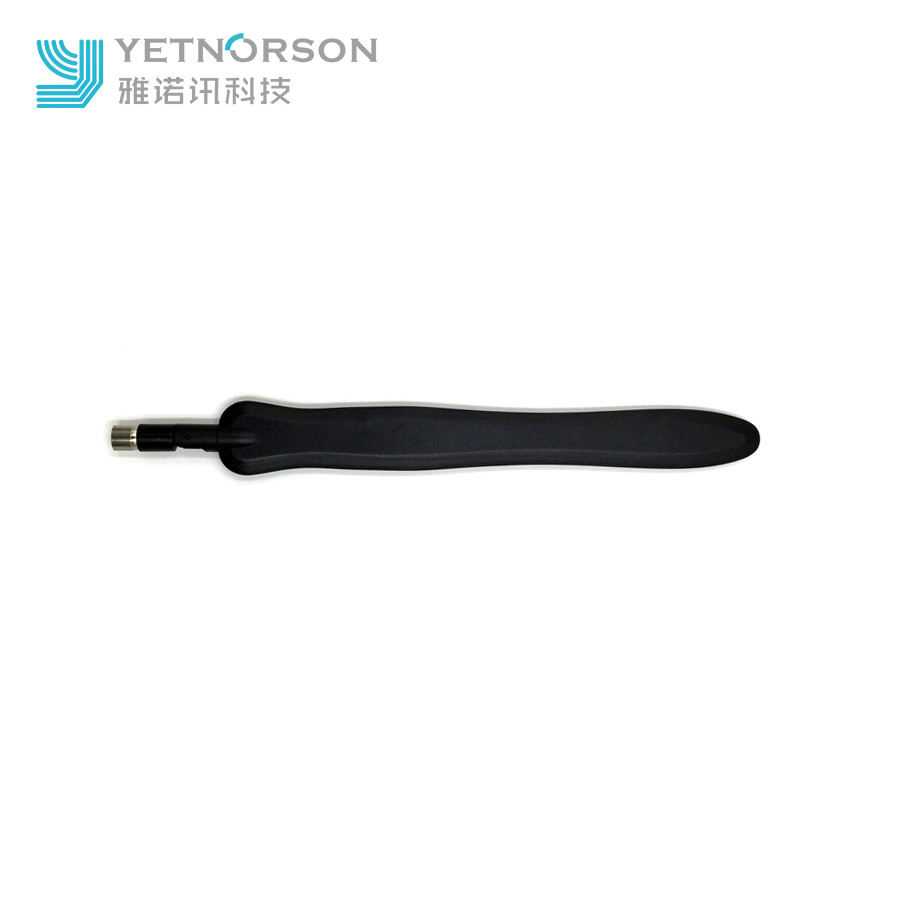

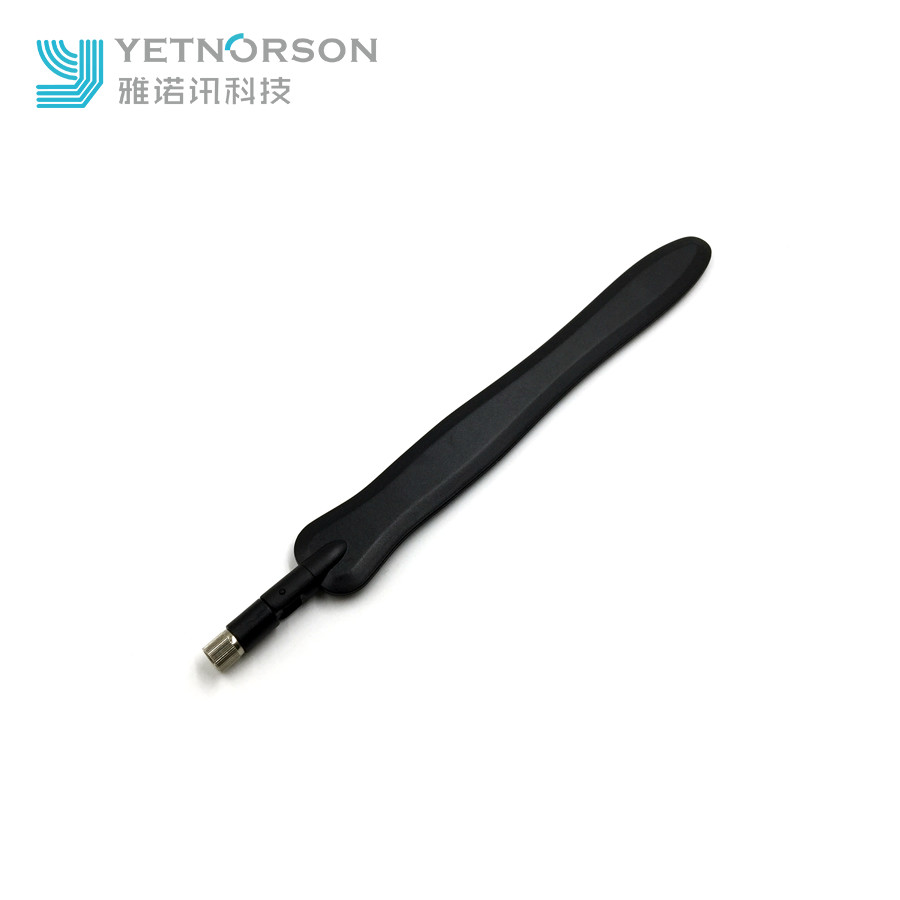

The appearance of made in china modem 4g router indoor omni 4g external lte antenna with SMA connector
4 G product series :
Test pattern :
Each products are through strict test
1. We can guarantee the product quality within one years
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred
Shenzhen Yetnorson technology Co., LTD. as one of the emerging high-tech enterprise.Who is one of the leader who is engaged in the antenna products .custom service, R&D, design,Our main prooducts at GSM/GPS/CDMA/DVB-T/DMB-T/DAB-T/ISDB /PHS / 3 G / 4 G /5.8G, 2.4 GHz (WIFI, wireless local-area network (wlan)-/ 3.5 GHz wimax (5.8 GHz) / wireless spread spectrum communication series
