| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Yetnorson |
| Model Number: | YNX-5G-PT003 |
| Minimum Order Quantity: | 100 chains |
| Price: | $10.00/chains 100-499 chains |
| Packaging Details: | One product with one PE bag packaging of omni mimo 5g cpe pro antenna outdoor 5g antenna 600-3800mhz high gain 20dbi antenna for 5g cpe pro router. |
| Supply Ability: | 2000 Piece/Pieces per Day |
| Type: | 2.4GHz & 5GHz Antenna | Frequency Range: | 698-960/1710-2700MHz,3800MHz |
|---|---|---|---|
| Gain: | 15-20 DBi | VSWR: | 2.0 |
| Polarization: | Horizontal+Vertical | Radiation: | Omnidirectional |
| Impedance: | 50 Ohm | Maximum Input Power (W): | 100W |
| Cable Length: | 50CM RG58U Or Customizable | Connector Type: | F Female Or Customizable |
| Operating Temperature ( ): | -40 To 85 C | Port: | Shenzhen |
item | value |
Place of Origin | Guangdong, China |
Brand Name | Yetnorson |
Model Number | YNX-5G-PT003 |
Frequency Range | 698-960/1710-2700MHz,3800MHz |
Gain | 15-20 dBi |
VSWR | 2.0 |
Polarization | Horizontal+Vertical |
Radiation | Omnidirectional |
Impedance | 50 Ohm |
Maximum input power (W) | 100W |
Cable Length | 50CM RG58U or Customizable |
Connector type | F Female or Customizable |
Operating temperature ( ℃ ) | -40 to 85 ℃ |
Antenna size (mm) | ф63*420 |

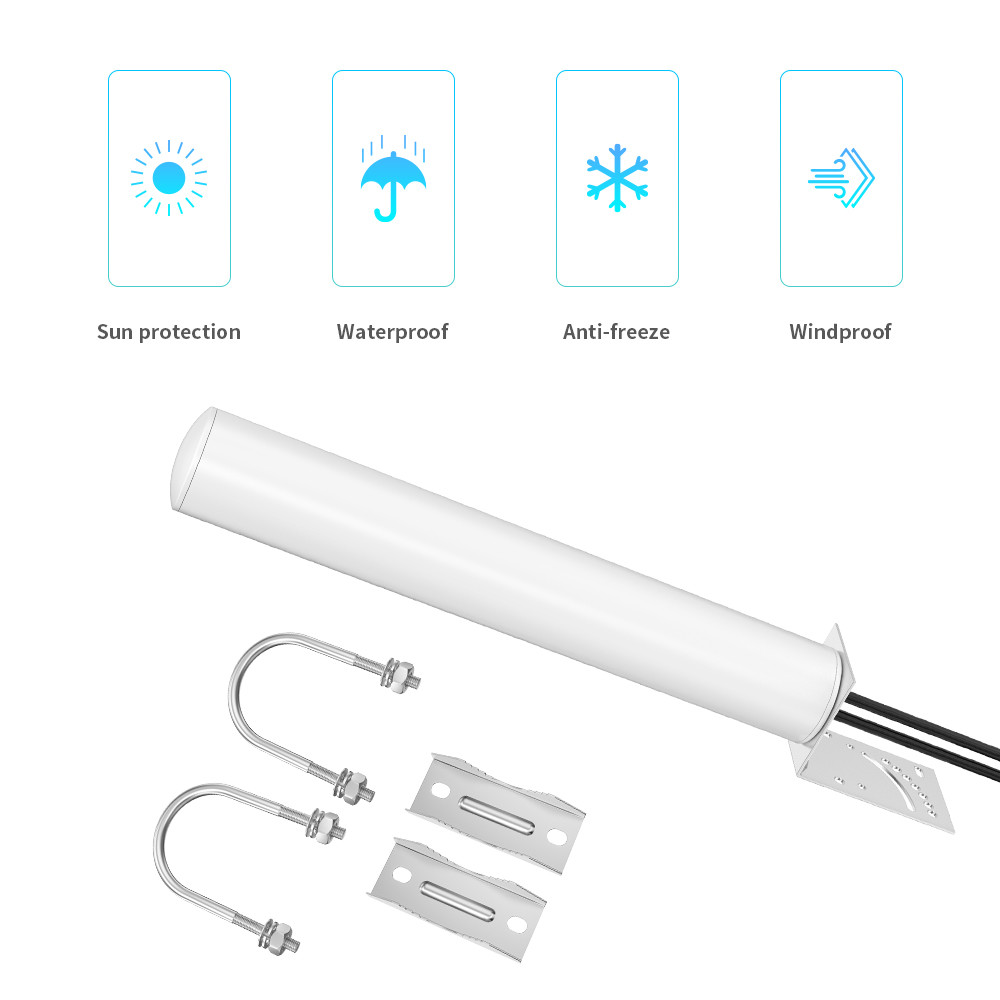

Mounting | L bracket installation |
Operating Temperature | -40℃～+85℃ |
Storing Temperature | -40℃～+85℃ |
Lightning protection | DC grounding |
Wind resistance | 60m/s |
Pole (mm) | ф25-ф40 |
Weight (g) | 808 |
