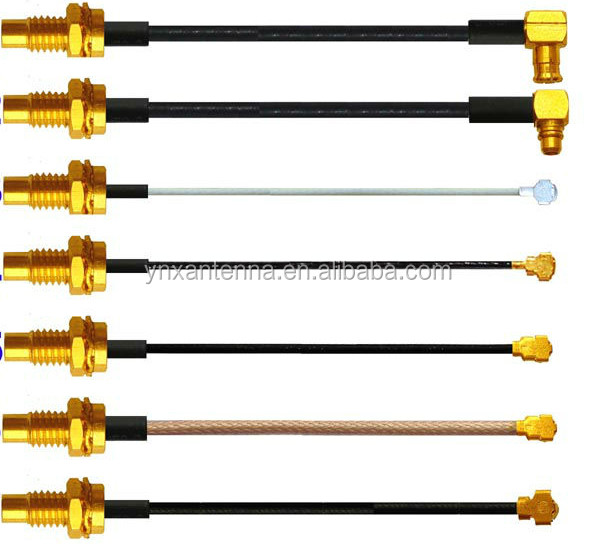

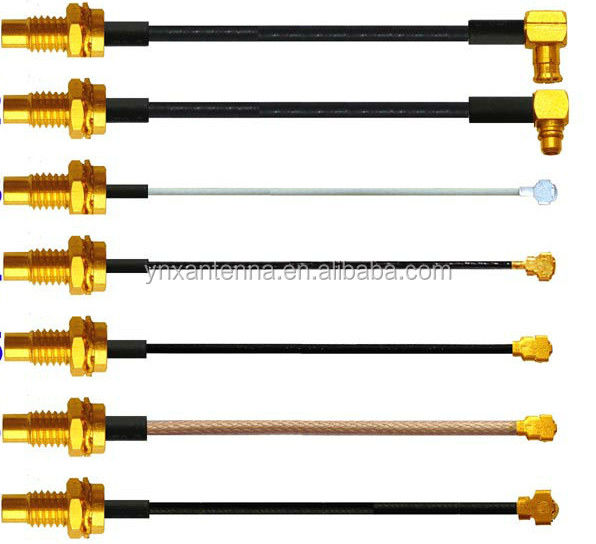

(manufacture)high gain Rf cable adapter SMA female connector pigtail cable for antenna with male and femaleL to SMA connector RF jumper cable
high quality rg178 cable
1.gold plated braid and connector.
2.SMA connector.
3.apply to communication equipment
According to according to customer needs, can be equipped with the following specifications MINI
COAXIAL CABLE (0.81mm, 1.13mm, 1.32mm, 1.37mm, 1.78mm)
Jacket color : black, white, gray, brown , etc. and match a variety of RF connectors
(RF CONNECTOR: SMA SSMA MCX MMCX, SMB, BNC, TNV, N prime ) ,
The length of their products according to customers' needs to be fixed . Products comply with ROHS standard
| SPEC | Structure of product |
| Connector Technical Characteristics | Frequency Range(MHZ) | 174~862 |
|
| V.S.W.R | ≤1.50+0.02f |
| Impedance (Ω) | 50Ω |
| Insertion Loss | 0.6DB |
| Plating | gold plated |
| KV | 50±2 |
| Insulator | PTFE |
| RG Flexible Cables Technical Characteristics | Cable Type | UI-1.78 |
| Center Conductor | 0.2 /Sliver Plated) |
| Insulation Dimensions | Ø 0.5±0.1mm PTFE |
| Screen Dimensions | Ø1.78 Sliver Plated |
| Jacket Dimensions | Ø1.78 |
| Nominal Impedance | 50Ω |
| Environment Specifications | Operation temperature | -55~+150°C |
| Operation Relative humidity | 55%~75% |
| Testing voltage of spark | 2000V |
| Testing voltage | 2000V |
| Attenuation(Typical)(dB/m) | 470MHz | 0.31dB |
| 665 MHz | 0.52dB |
| 712MHz | 059dB |
| 800 MHz | 0.61dB |
| 862 MHz | 0.65dB |
Shenzhen Yetnorson Technology Co.,Ltd is one of the professional antenna maker focus on the development, design, manufacture, sale and Service of radio communications antennas. which has been dedicated to the antenna development like GSM/CDMA/PHS/3G/4G antenna, 2.4GHz (wi-fi, wlan)/3.5GHz (wimax)/5.8GHz/wi-fi amplifier communication antenna serial(including: all direction, yagi antennas ,3G parabolic antennas, panel antenna, indoor antenna like : ceiling mount antenna, Wall Mount Antenna, desk antenna, double polar, rubber, bandwide, card mount serial antenna. We also provide DVB-T/DMB-T/CMMB moving digital TV antenna, low frenquency antenna: 315MHz/433MHz wi-fi digital /wi-fi control /wi-fi wrote water meter/electricity meter antenna, GPS guide antenna, communicate parts, connector and so on. At present, Shenzhen Yetnorson Technology Co.,Lth.has developed more than 100 styles of antenna, with wi-fi internet, wi-fi electronic control, wi-fi end, wi-fi public telephone, wi-fi digital pass, wi-fi Satilla position, wi-fi Radio broadcasting communication field.
Refund & Replacement
1. We can guarantee the product quality within one years .
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred.
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation
