| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | yetnorson |
| Model Number: | YNX- ISDB antenna-0316 |
| Minimum Order Quantity: | 100 pieces |
| Price: | $2.65/pieces 100-999 pieces |
| Packaging Details: | 1pcs antenna/PE bag. 200pcs/CTN for hot sale in Japan wireless car indoor gps isdb tv antenna signal booster with GT16 GT13 VR1 connector |
| Supply Ability: | 20000 Piece/Pieces per Day |
| Year: | Universal | Model: | Universal |
|---|---|---|---|
| Car Fitment: | Universal | Car Make: | Ordinary |
| Frequence Range: | 470mhz-862mhz | Gain(dB): | 5dbi |
| Cable Length: | 3000mm | Frequency (MHz): | 470mhz-862mhz,1575.42MHz |
| Gain(dBi): | 5dBi | Polarization Intensity: | R.H.C.P |
| V.S.W.R: | ≤1.5 | Axial Ratio: | 3db(max) |
| Impedance: | 50ohm | Supply Voltage: | DC3.3-5.0V |
| Weight (g): | 100g | Connector: | IPEX/SMB/MCX/FAKRA Or Others |
| Cable: | RG174 |
hot sale in Japan wireless car indoor gps isdb tv
antenna signal booster with GT16 GT13 VR1 connector
Welcome to Shenzhen Yetnorson technology Co., LTD.
The advantage of hot sale in Japan wireless car indoor gps isdb tv antenna signal booster with GT16 GT13 VR1 connector
1,rich experience , proven technique
2,low price and high gain
3,wider frequency
Specifications of hot sale in Japan wireless car indoor gps isdb tv antenna signal booster with GT16 GT13 VR1 connector
| Electrical Specification | |
| Center Frequency (MHz) | 1575.42MHZ±2MHZ |
| Bandwidth (MHz) | ±2MHZ |
| Gain (dBi) | 29dB±3dB(LNA) |
| Input Impendence (Ω) | 50Ω |
| V.S.W.R | ≤1.8 |
| Consumption Electric | <10mA |
| Polarization Intensity | R.H.C.P |
| Supply Voltage | DC3.3~5.0V |
| ESD-Compliant | SJ/T 10694 |
| Testing voltage(KV) | 15 |
| The Sound Coefficient | ≤1.5dB |
| Axial Ratio | 3dB |
| Max Input Power (w) | 50w |
| Operating Temperature | -40°C~+85°C |
| Storing Temperature | -20°C~+85°C |
| Cable length (mm) | 3000 |
| Connector Type | FAKRA C (Blue) IPEX |
| Radome Color | Black |
| Dimension-mm | Φ72 x 21 |
| Weight (g) | 140 |
| Electrical Specifications | |
| Frequency Range (MHz) | 1575.42Mhz |
| Input Impendence (Ω) | 50 |
| V.S.W.R | ≤1.5 |
| Gain (dBi) | 3.0 |
| Polarization Type | Vertical |
| Radiation Direction | Omnidirectional |
| Max Input Power (w) | 50 |
| Operating Temperature | -40°C~+85°C |
| Storing Temperature | -20°C~+85°C |
| Cable length (mm) | 3000 |
| Connector Type | Customized |
| Radome Color | Black |
| Dimension-mm | 25mm*25mm*4mm |

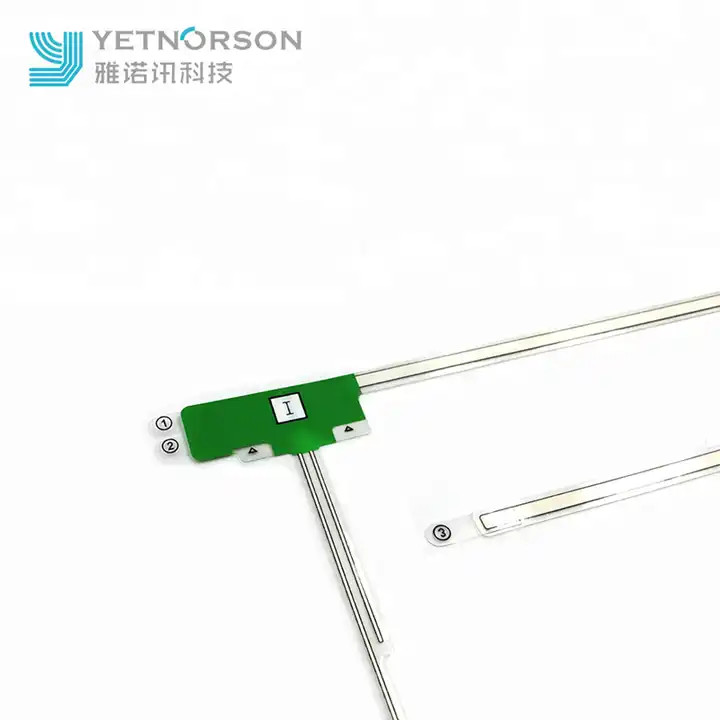

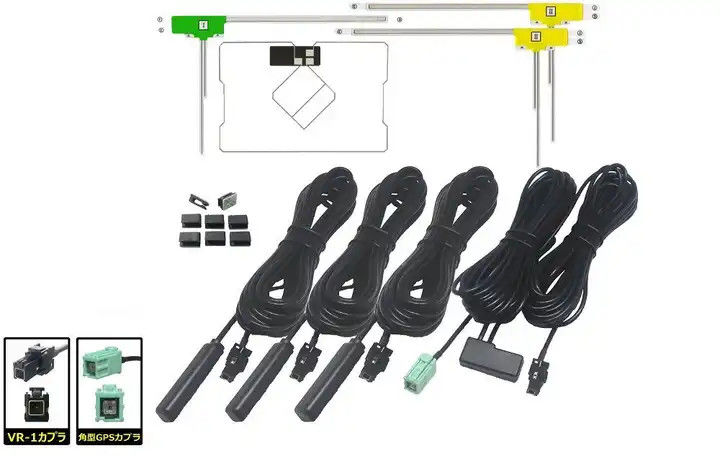

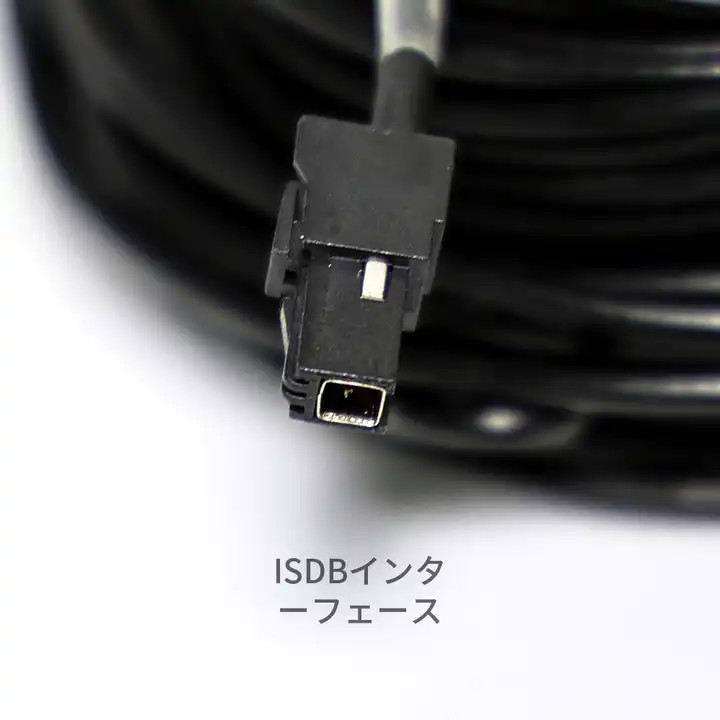

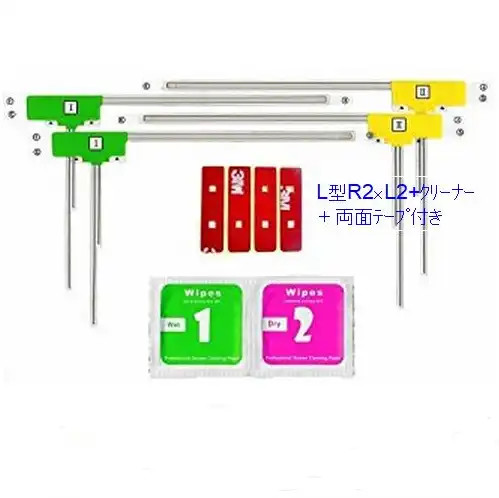

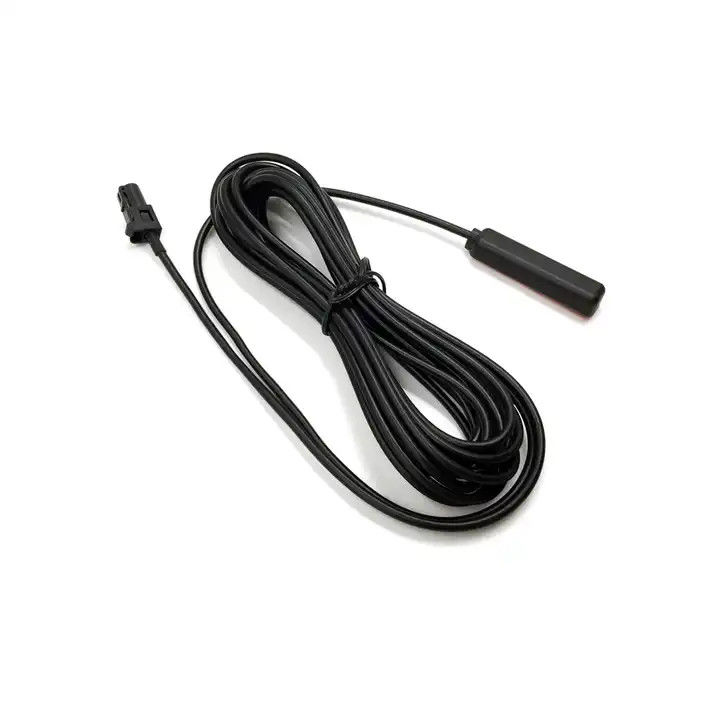

The appearance of hot sale in Japan wireless car indoor gps isdb tv antenna signal booster with GT16 GT13 VR1 connector
testing:
Each products must pass a test,
GPSM Antenna GPS GSM Anten GPS GSM Antenna
1. We can guarantee the product quality within one years
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred
Shenzhen Yetnorson technology Co., LTD. as one of the emerging high-tech enterprise.Who is one of the leader who is engaged in the antenna products .custom service, R&D, design,Our main prooducts at GSM/GPS/CDMA/DVB-T/DMB-T/DAB-T/ISDB /PHS / 3 G / 4 G /5.8G, 2.4 GHz (WIFI, wireless local-area network (wlan)-/ 3.5 GHz wimax (5.8 GHz) / wireless spread spectrum communication series
