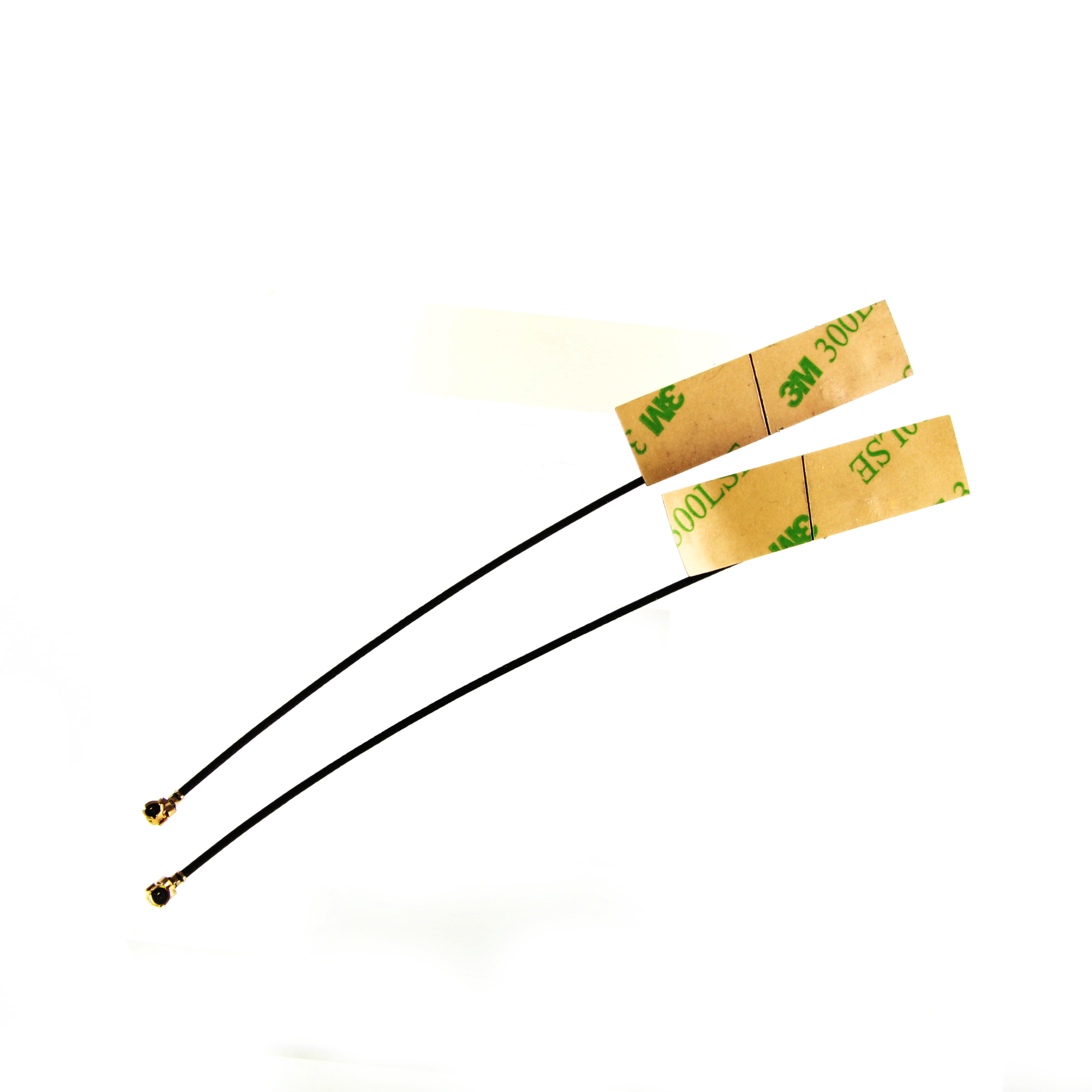

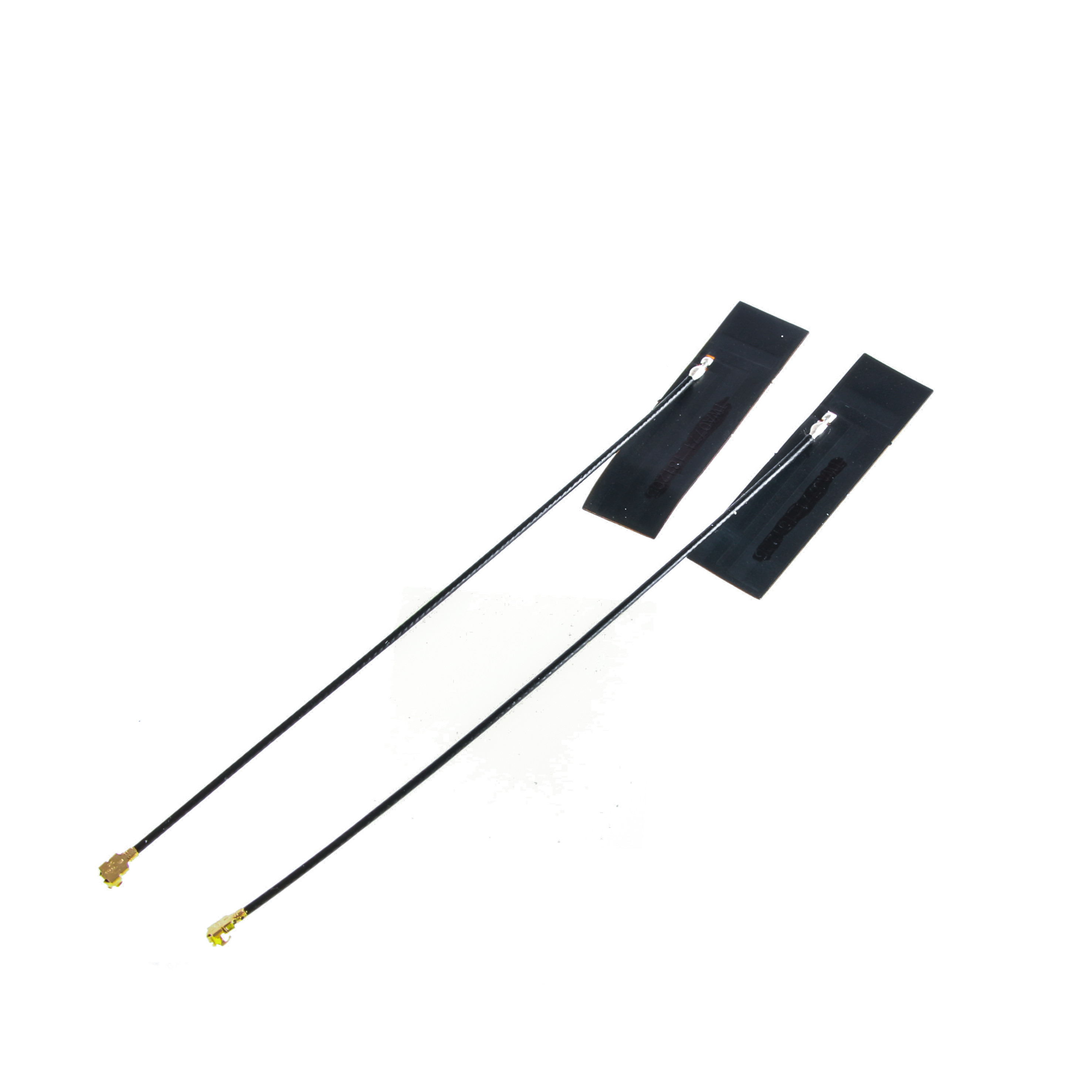

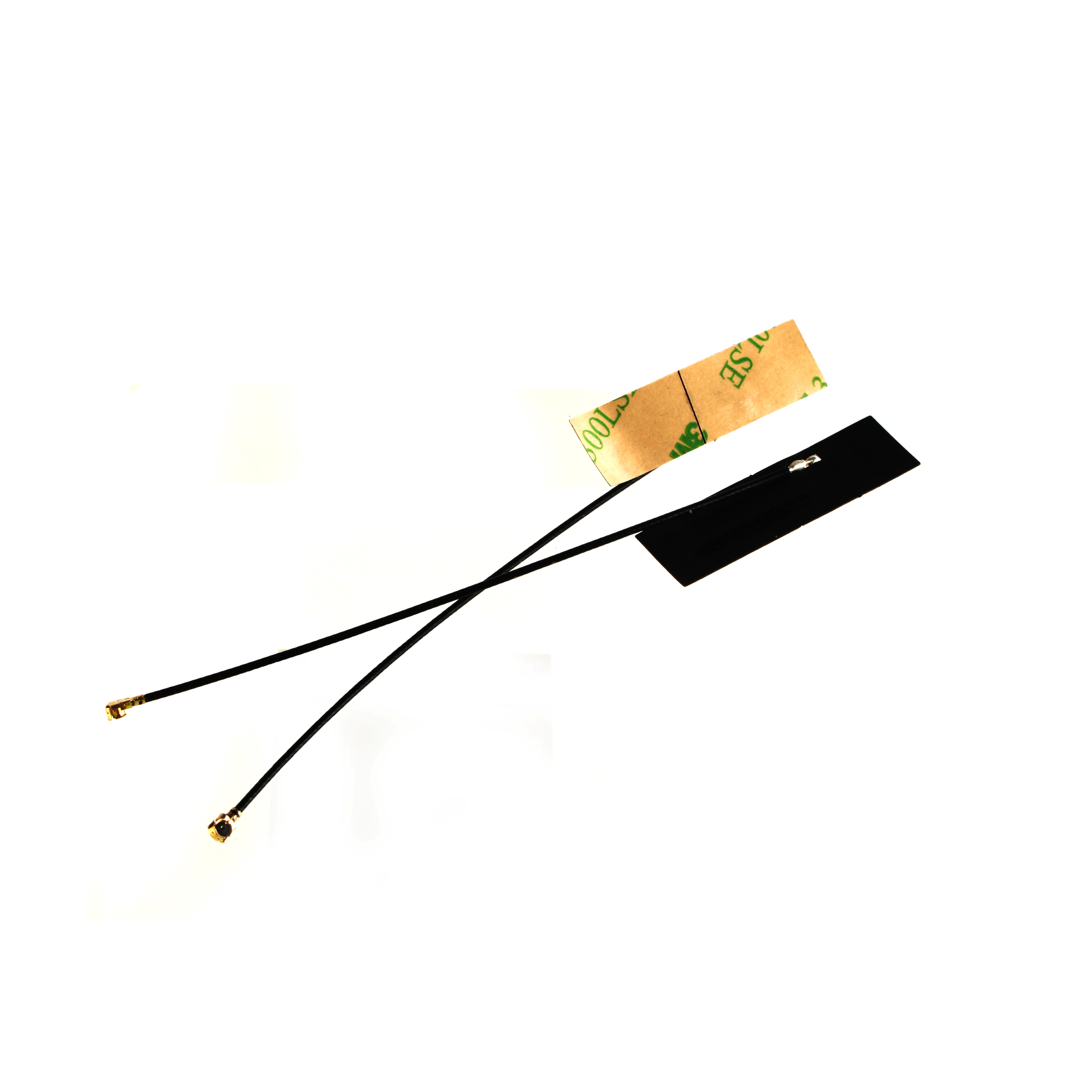

Signal Booster GSM/2G/3G/LTE/4G/GPRS Internal Flexible PCB FPC NFC WIFI Antenna

1.Detailed Technology of 2.4G /5.8G dual band Wifi Internal FPCB Antenna with Ipex connector Tin plated Strip

A. Electrical Characteristics
2.4GHz Antenna for IEEE802.11b/g/n WLAN System or Bluetooth
IEEE 802.11 b/g/n WLAN System
Wireless Communication System
Wi-Fi / WiMAX / MIMO System
Frequency:  2.4G/5.8G
S.W.R.:  <= 2.0
Antenna Gain: 2.4G 5dBi/ 5.8G 2dBi
Polarization: Linear
Impedance: 50 Ohm

B. Material & Mechanical Characteristics
Material of Radiator FPCB

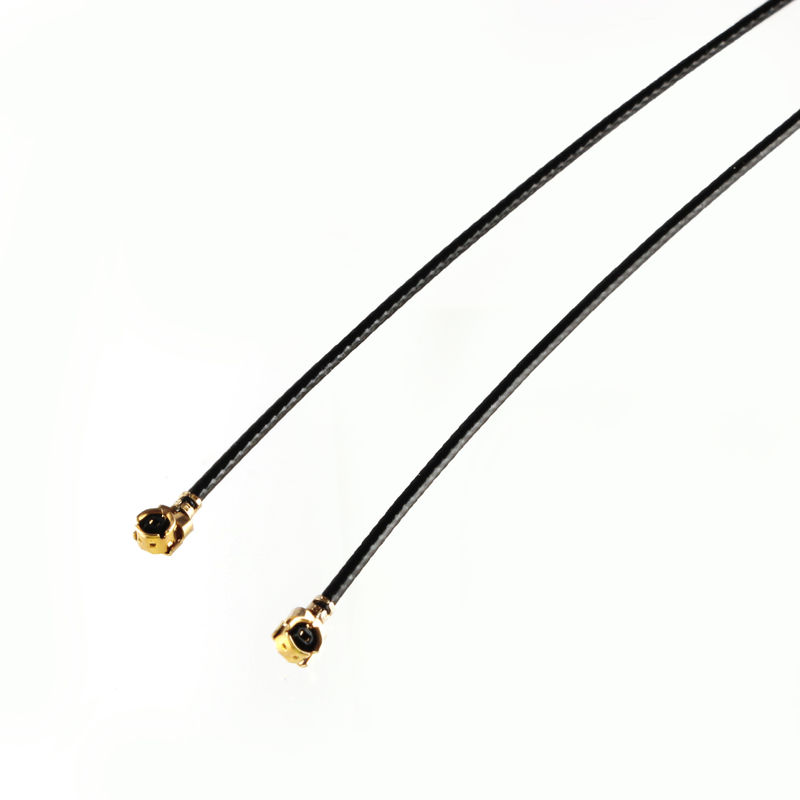

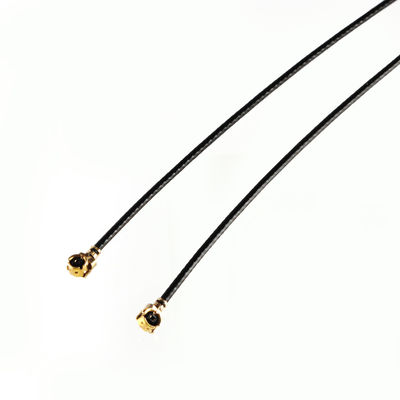

Cable Type: O.D. 1.13 mm // 100 mm
Connector Type: UFL
Pull Test: >= 1.0 Kg

C. Environmental
Operation Temperature - 40 °C ~ + 65 °C
Storage Temperature - 40 °C ~ + 80 °C
