| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Yetnorson |
| Model Number: | RF1.13 CABLE ipex IPEX tieline |
| Minimum Order Quantity: | 10 chains |
| Price: | $0.40 - $1.00/chains |
| Packaging Details: | 10 pcs in one PE bag |
| Supply Ability: | 20000 Meter/Meters per Day RF1.13 CABLE sma pex IPEX tieline |
| Number Of Conductors: | ≥ 10 | Type: | COAXIAL |
|---|---|---|---|
| Cable: | RG1.13 | Made In: | China |
| V.S.W.R: | ≤1.5 | Input Impendence: | 50 OHM |
| Polarization Inten: | R.H.C.P | Connector Type: | SMA-female To IPEX |
| Max Input Power: | 50 OHM | Product Name: | RF1.13 CABLE IPEX Tieline |
| Port: | Shenzhen |

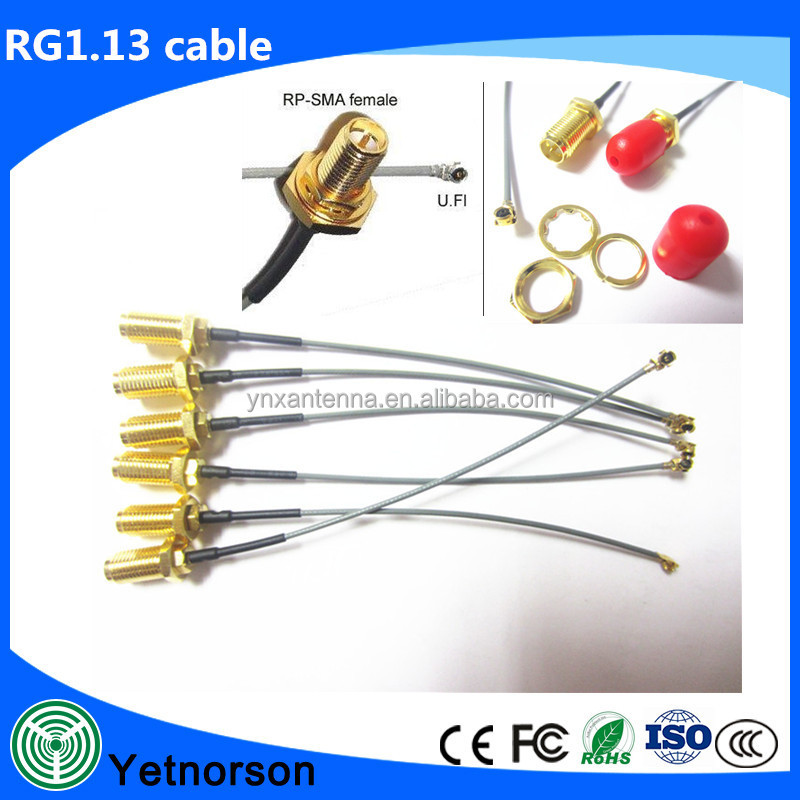

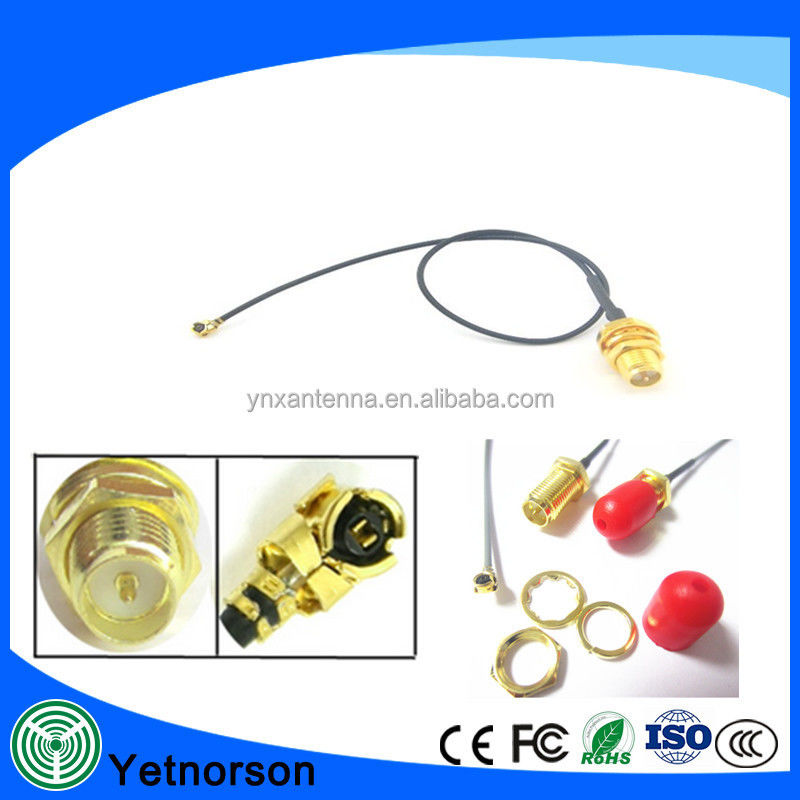

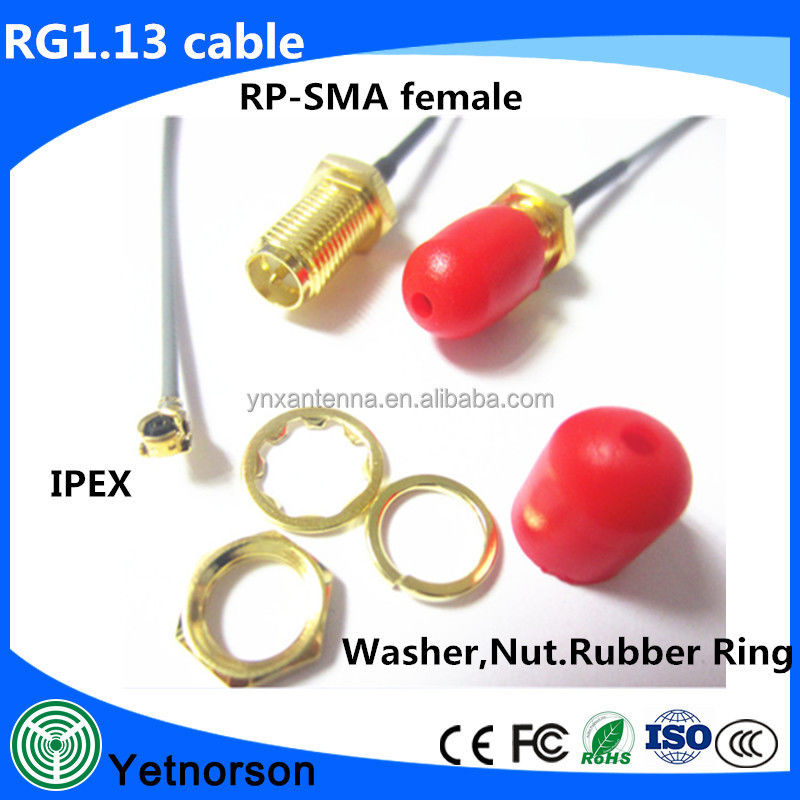

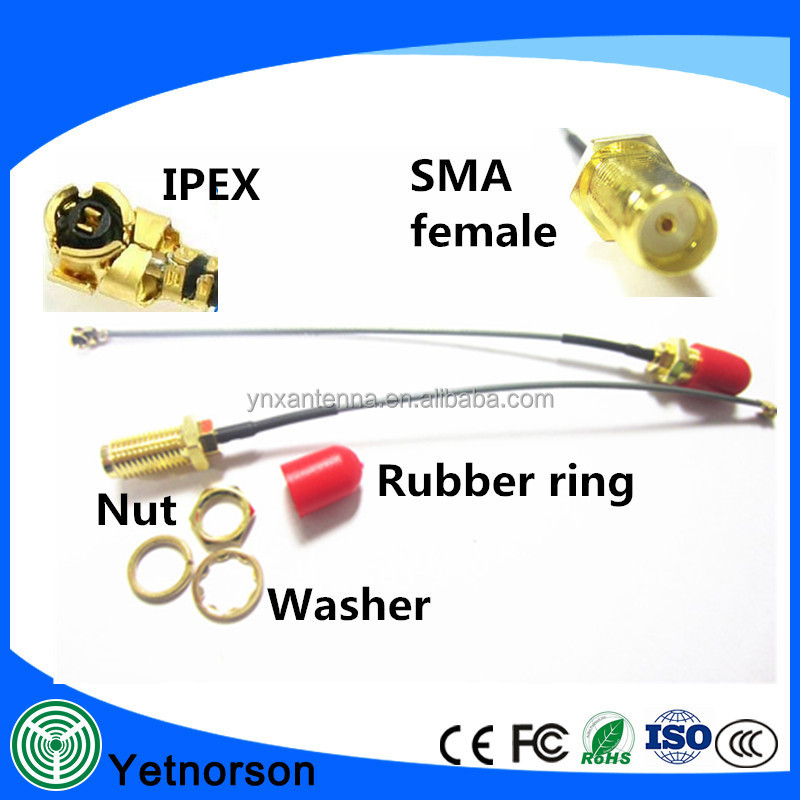

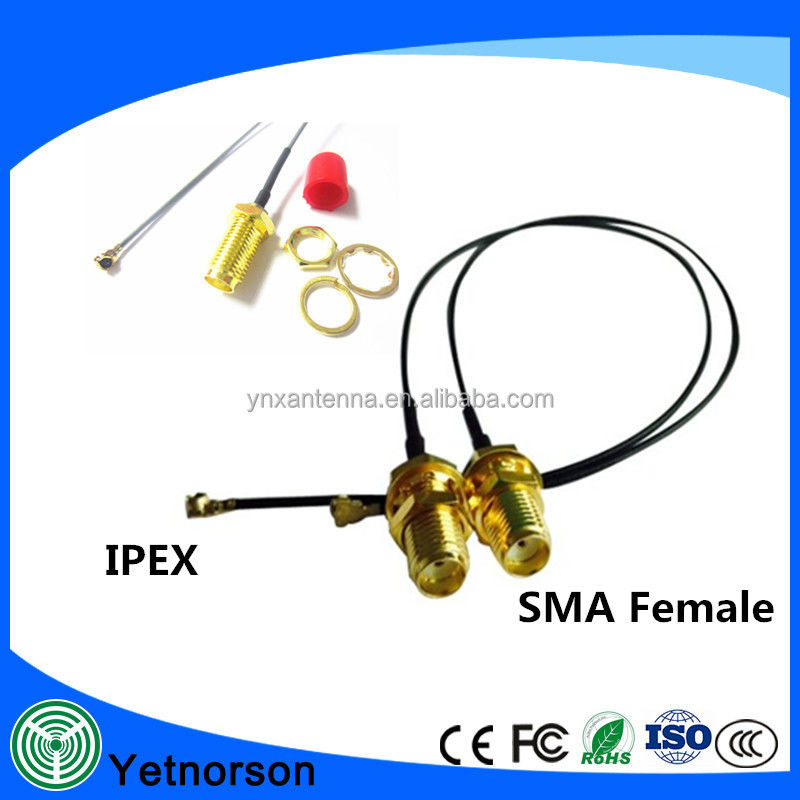

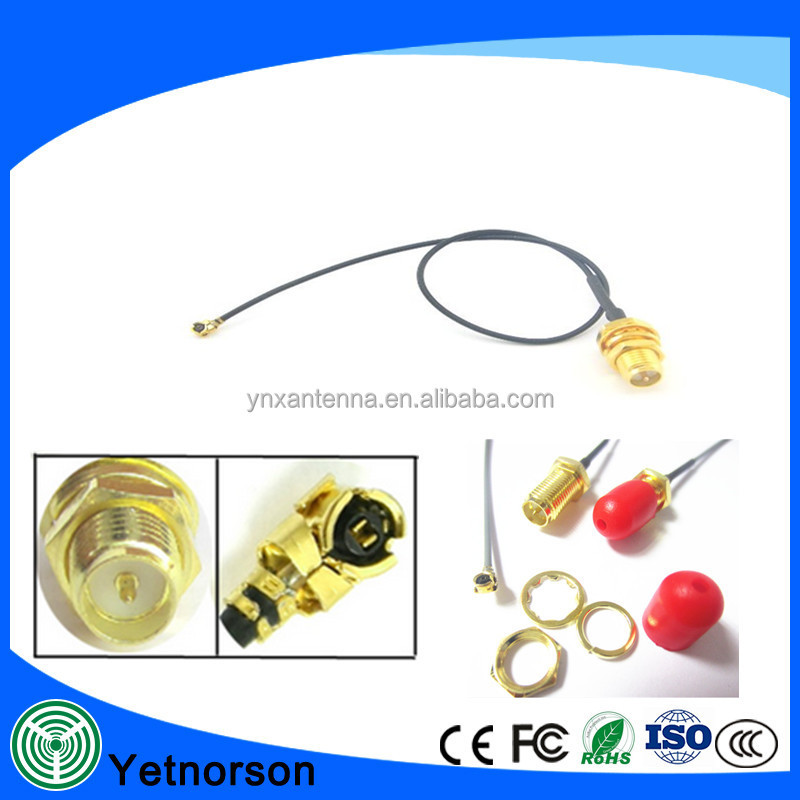

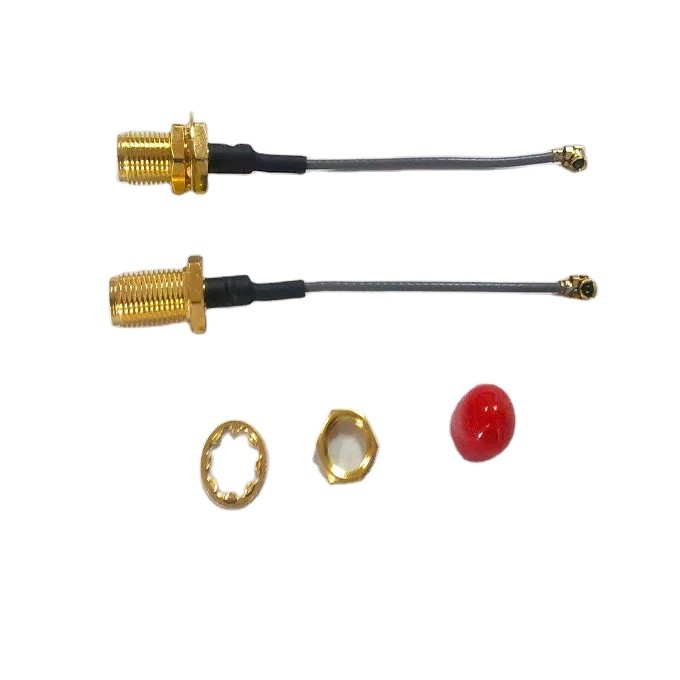

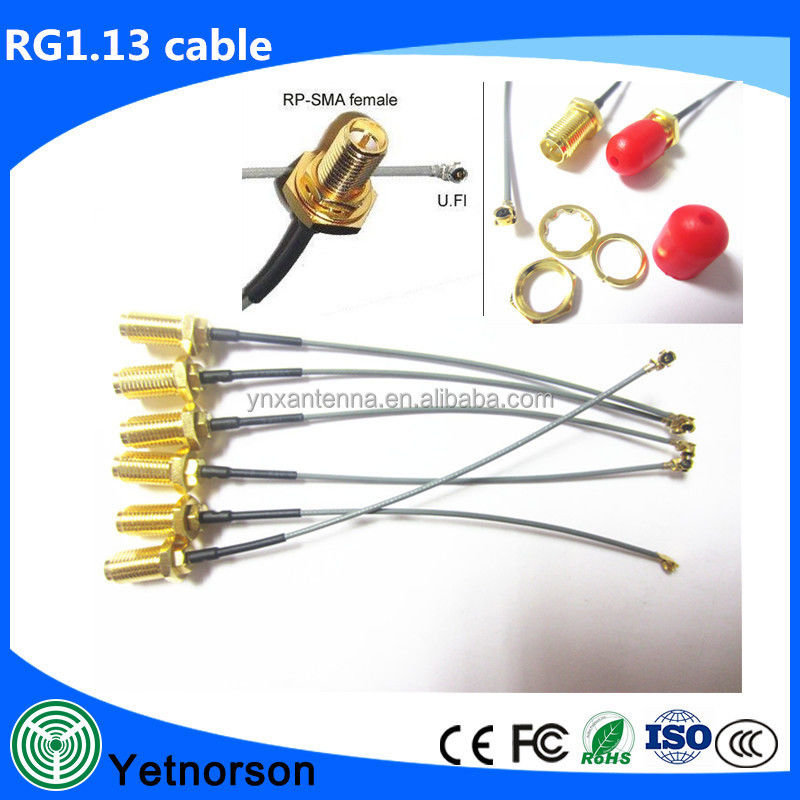

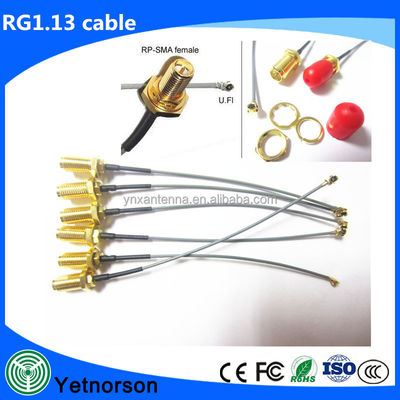

10cm jumper cable rg1.13 with SMA female to U.fl IPX connector cable
The advantage of rg1.13 with SMA female to U.fl IPX connector
IPEX interface SMA-1.13 coaxial switch wiring
Connector type: SMA female pin (external screw-PIN), and our SMA antenna connection
Feeder: 1.13 grey line
For SMA interface and no internal pluggable interface/AP wireless router/network card
Specifications of rg1.13 with SMA female to U.fl IPX connector
SSmall ter
| Cable Type(Name) | IPEX -SMA female RG1.13 cable | |
| Cable Length | 150mm (Customized Length Available) | |
| Operating Frequency | DC0-3GHz | |
| VSWR | ≤1.20 @DC-3GHz | |
| Durability | ≥500 cycles | |
| Waterproof Rate | IP68 | |
| Operating Temperature | 45 °C-85 °C | |
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Ni |
| Ferule | Annealed Copper | Ni |
| Bandwidth 100MHZ | ||
| Product Name | RF pigtail cable with Connector |
| Cable | RG1.13, RG178, RG1.32, RG0.81 |
| Connector | SMA female-Ipex (Other Available Connector: MCS/MMCX/GSC/MCD/MCG and etc) |
| Conductor | Bare copper |
| Jacket | PTFE |
| Gender | Male to male, Male to female, female to female can be customized) |
| Application | Mobile, Cellphone, Wifi, Blutooth device, PC, GSM, GPRS, GPS |
| Frequency | DC 0 to 6GHz (VSWR: 1.5Max.) |
According to according to customer needs, can be equipped with the following specifications MINI
COAXIAL CABLE (0.81mm, 1.13mm, 1.32mm, 1.37mm, 1.78mm)
Jacket color : black, white, gray, brown , etc. and match a variety of RF connectors
(RF CONNECTOR: SMA SSMA MCX MMCX, SMB, BNC, TNV, N prime ) ,
The length of their products according to customers' needs to be fixed . Products comply with ROHS standard
1. We can guarantee the product quality within one years
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred
Shenzhen Yetnorson technology Co., LTD. as one of the emerging high-tech enterprise.Who is one of the leader who is engaged in the antenna products .custom service, R&D, design,Our main prooducts at GSM/GPS/CDMA/DVB-T/DMB-T/DAB-T/ISDB /PHS / 3 G / 4 G /5.8G, 2.4 GHz (WIFI, wireless local-area network (wlan)-/ 3.5 GHz wimax (5.8 GHz) / wireless spread spectrum communication series
